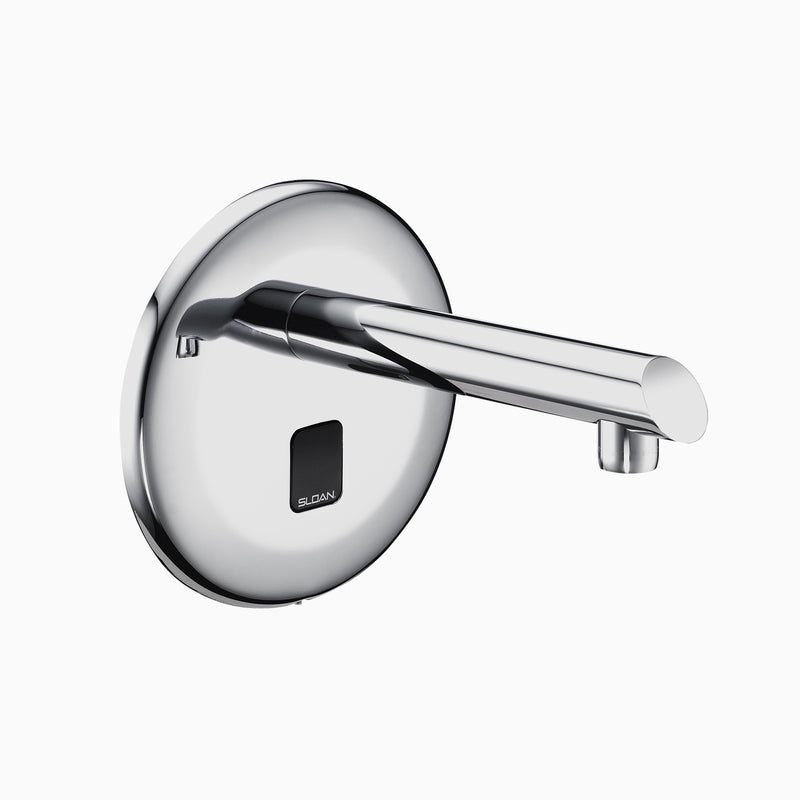

Sloan Optima ETF-800 SMT 0.5 GPM Box Transformer Sensor Faucet, Polished Chrome

The Sloan ETF-800 SMT is a Wall-mounted Optima sensor faucet powered by a plug-in AC transformer. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. Available in Polished Chrome.

The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The IoT enabled ETF-800 SMT is a hardwired wall-mounted profile which provides enhanced aesthetics and features for effective hand washing, making it well suited for most commercial restroom environments. The ETF-800 SMT faucet comes with a number of features, including automatic self-adapting sensor technology, integrated water shut-off, hygienic line flush and quick connect fittings. Supported by the SC Argus® Pro smart restroom platform, the ETF-800 SMT enables remote monitoring, bulk setting changes, and actionable reporting, with visibility into water usage, operating status, and maintenance needs. Automated line flush scheduling helps maintain water quality and prevent stagnant water. Additionally, the ETF-800 SMT includes all necessary mounting hardware and 6 VDC plug adapter (included with PLG models) or 24 VAC box transformer (included with BOX models).

Features

• Box Transformer Power Supply, Mixer Not Included, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
• Chrome plated finish
• Commercial Grade Faucet
• ADA Compliant
• Cast Brass Spout
• Quick Connect Fittings
• Integrated Water Shut-off
• Remote wireless setting adjustments
• On-demand or metered activation
• Automated hygienic line flush
• Self-adapting Sensor
• Wireless two-way communication with IoT cloud-based system
• Remote management and monitoring of faucet
• Comprehensive view of device settings with image and location information
• Collects information on device activations and water usage
• Remote bulk setting changes and line flush scheduling
• Faucet operates normally when not connected to the SC Argus® Pro system

Common Questions

How is this faucet powered, and what ships in the box?

This faucet ships with a plug-in AC transformer.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Does this faucet include a mixing valve?

No. This model ships without a mixing valve (Mixer Not Included) -- it runs on a single already-tempered supply, or a mixing valve must be specified upstream.

What is the flow rate, and is it WaterSense certified?

It delivers 0.5 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor with a detection range of 8”-10”. It is IoT-enabled for remote monitoring through SC Argus Pro.

Specifications

• Type: Sensor Faucet
• MPN: ETF-800 SMT-BOX-CP-0.5GPM-MLM-IOT-FCT
• Certifications: ASSE-1070, CALGreen, CEC, FCC, NSF-61, NYC 604.4, TAS
• Power Source: AC (Plug-In)
• Power Supply Detail: Box Transformer (BOX)
• Run Time (s): 30
• Sensor Type: Infrared
• Sensing Range (in): 8”-10”
• Connectivity: IoT (SC Argus Pro)
• Centers: Single-Hole
• Mixing Valve: Mixer Not Included
• Outlet Type: Multi-Laminar (Non-Aerating)
• Body Height: Wall
• Mount Type: Wall-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
