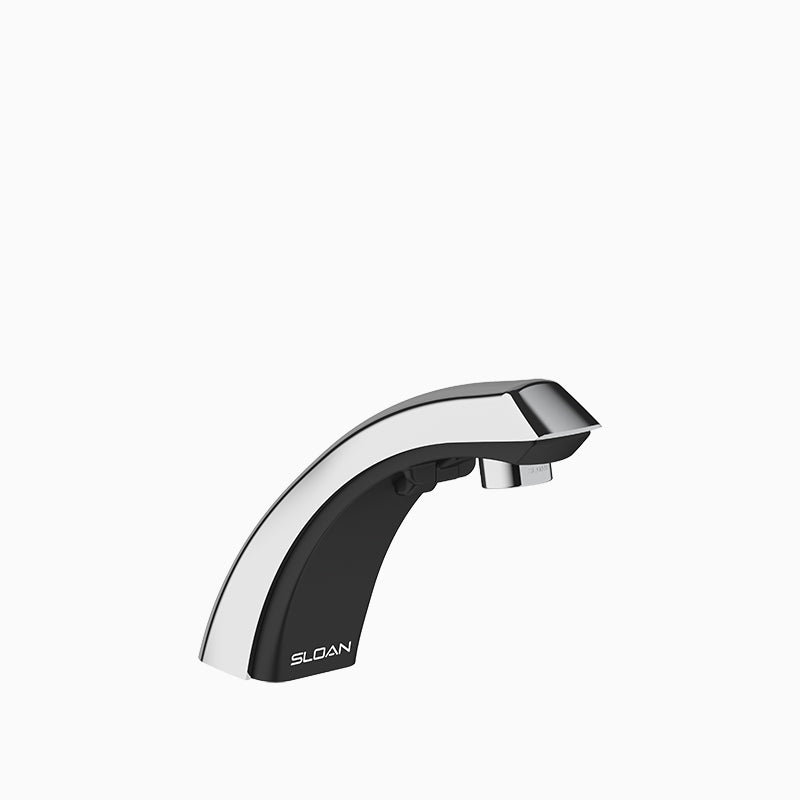

Sloan Optima ETF-80 SMT 0.5 GPM Plug Adapter Sensor Faucet, Polished Chrome, 8" Trim Plate, Above-Deck Mixer

The Sloan ETF-80 SMT is a Deck-mounted Optima sensor faucet powered by a plug-in AC transformer. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes an above deck mixer. Available in Polished Chrome.

The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The IoT enabled ETF-80 SMT is a hardwired mid height profile which provides a field tested and hard-working faucet for effective hand washing, making it well suited for most high traffic commercial restroom environments. The ETF-80 SMT faucet comes with a number of features, including automatic self-adapting sensor technology, cast brass spout, hygienic line flush and quick connect fittings. Supported by the SC Argus® Pro smart restroom platform, the ETF-80 SMT enables remote monitoring, bulk setting changes, and actionable reporting, with visibility into water usage, operating status, and maintenance needs. Automated line flush scheduling helps maintain water quality and prevent stagnant water. Additionally, the ETF-80 SMT includes all necessary mounting hardware and 6 VDC plug adapter (included with PLG models) or 24 VAC box transformer (included with BOX models. For a unified restroom design, the ETF-80 SMT pairs seamlessly with the ESD-800 soap dispenser.

Options on this configuration: 8" Trim Plate (8).

Features

• 8" Trim Plate, Plug Adapter Power Supply, Above Deck Mixer, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
• Chrome plated finish
• Commercial Grade Faucet
• ADA Compliant
• Cast Brass Spout
• Quick Connect Fittings
• Integrated Water Shut-off
• Remote wireless setting adjustments
• On-demand or metered activation
• Automated hygienic line flush
• Self-adapting Sensor
• Wireless two-way communication with IoT cloud-based system
• Remote management and monitoring of faucet
• Comprehensive view of device settings with image and location information
• Collects information on device activations and water usage
• Remote bulk setting changes and line flush scheduling
• Faucet operates normally when not connected to the SC Argus® Pro system

Common Questions

How is this faucet powered, and what ships in the box?

This faucet ships with a plug-in AC transformer.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes an above deck mixer. It is ASSE 1070 listed, so the delivered water temperature is limited even if the hot supply runs too hot.

What is the flow rate, and is it WaterSense certified?

It delivers 0.5 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor with a detection range of 4”-5”. It is IoT-enabled for remote monitoring through SC Argus Pro.

Specifications

• Type: Sensor Faucet
• MPN: ETF-80 SMT-8-PLG-ADM-CP-0.5GPM-MLM-BAA-IOT-FCT
• Certifications: ASSE-1070, Buy American Act, CALGreen, CEC, FCC, NSF-61, NYC 604.4, TAS
• Power Source: AC (Plug-In)
• Power Supply Detail: Plug Adapter (PLG)
• Run Time (s): 30
• Sensor Type: Infrared
• Sensing Range (in): 4”-5”
• Connectivity: IoT (SC Argus Pro)
• Centers: Single-Hole
• Trim Plate: 8"
• Mixing Valve: Above Deck Mixer
• Outlet Type: Multi-Laminar (Non-Aerating)
• Body Height: Mid
• Faucet Hole Size (min): 1-1/4"
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
