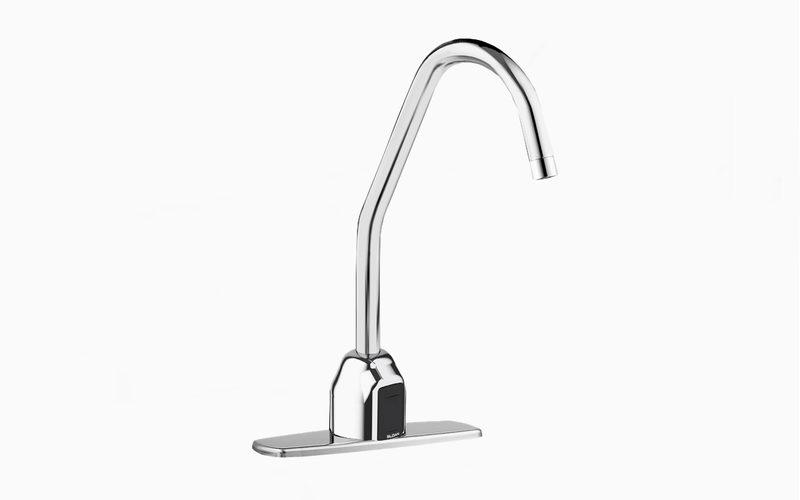

Sloan Optima EBF-750 2.2 GPM Battery-Powered Sensor Faucet, Polished Chrome, 8" Trim Plate, Surgical Bend Spout, Below-Deck Thermostatic Mixer

The Sloan EBF-750 is a Deck-mounted Optima sensor faucet powered by battery. It delivers 2.2 GPM through a laminar (non-aerating) outlet. It includes a below deck thermostatic mixing valve. Available in Polished Chrome. This model is certified lead-free for potable-water installations.

The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EBF-750 is a battery or turbine powered gooseneck body that provides optimal height and proportions for effective hand washing, making it well suited for most commercial restroom environments. The EBF-750 faucet comes with a number of features, including automatic self-adapting sensor technology, integrated water shut-off, hygienic line flush and quick connect fittings. The EBF-750 is bluetooth enabled that provides water usage and battery strength reporting as well as allows for wireless settings adjustment when used with the Sloan Connect App. The EBF-750 is available with a standard gooseneck spout design or surgical bend spout, you can also select a shower head spray type for more water coverage when hand-washing. Additionally, the EBF-750 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and AA alkaline batteries.

Options on this configuration: 8" Trim Plate (8); Surgical Bend Spout (S).

Features

• 8" Trim Plate, Battery Power Supply, Below Deck Thermostatic Mixing Valve, Polished Chrome Finish, 2.2 gpm, Laminar Spray, Infrared Sensor
• Chrome plated finish
• Commercial Grade Faucet
• ADA Compliant
• Cast Brass Spout
• Quick Connect Fittings
• Integrated Water Shut-off
• Wireless Settings Adjustment
• On-demand or Metered activation
• Hygienic Line Flush
• Water Usage and Battery Strength Reporting
• Self-adapting Sensor

Common Questions

How is this faucet powered, and what ships in the box?

This faucet runs on battery power. Sloan states a battery life of 3 years 8,000 cycles/month. No transformer or wiring is required.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes a below deck thermostatic mixing valve. It is ASSE 1070 listed, so the delivered water temperature is limited even if the hot supply runs too hot.

What is the flow rate, and is it WaterSense certified?

It delivers 2.2 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor with a detection range of 8”-10”. It supports Bluetooth commissioning through the Sloan Connect app.

Specifications

• Type: Sensor Faucet
• MPN: EBF-750-8-BAT-BDT-CP-2.2GPM-LAM-S-FCT
• Certifications: ADA, ASSE-1070, IAPMO, NSF-61, TAS, NSF-372
• Lead-Free: Yes
• Power Source: DC (Battery)
• Power Supply Detail: Battery (BAT)
• Battery Life: 3 years 8,000 cycles/month
• Run Time (s): 30
• Sensor Type: Infrared
• Sensing Range (in): 8”-10”
• Connectivity: Bluetooth
• Centers: Single-Hole
• Trim Plate: 8"
• Mixing Valve: Below Deck Thermostatic Mixing Valve
• Outlet Type: Laminar (Non-Aerating)
• Spout Type: Gooseneck
• Faucet Hole Size (min): 1-1/4"
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 2.2
