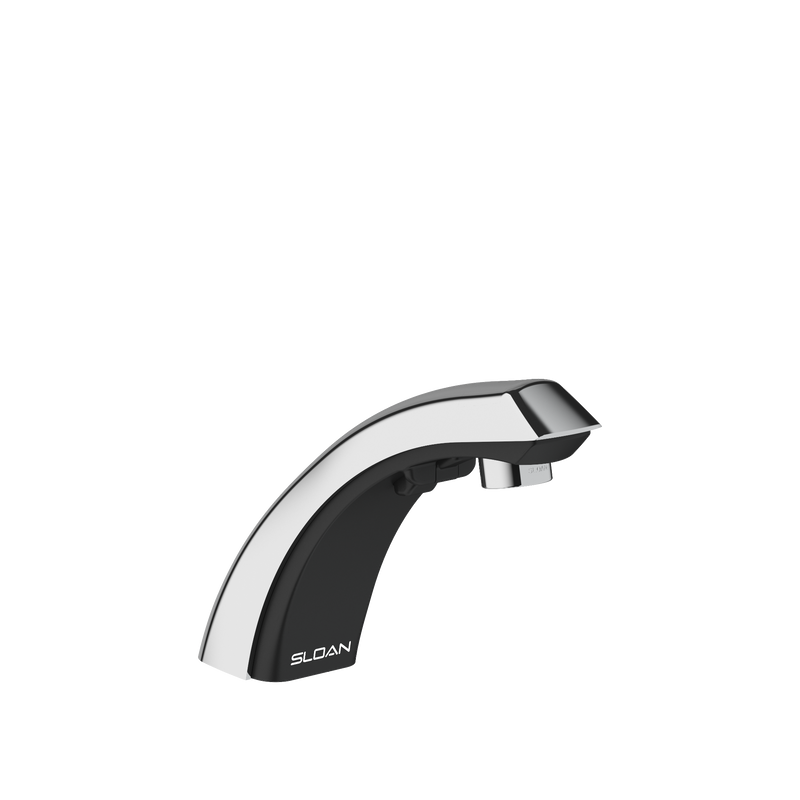

The Sloan EBF-85 is a Deck-mounted Optima sensor faucet powered by battery. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a below deck thermostatic mixing valve. Available in Polished Chrome. This model is certified lead-free for potable-water installations.
The Optima faucet is ideal for applications that require a reliable sensor activated faucet and efficient water savings. The EBF-85 is a battery or turbine powered mid height body that provides a field tested and hard-working faucet for effective hand washing, making it well suited for most high traffic commercial restroom environments. The EBF-85 faucet comes with a number of features, including automatic self-adapting sensor technology, cast brass spout, hygienic line flush and quick connect fittings. The EBF-85 is bluetooth enabled that provides water usage and battery strength reporting as well as allows for wireless settings adjustment when used with the Sloan Connect App. Additionally, the EBF-85 comes with the ability to make adjustable time-outs, as well as includes all necessary mounting hardware and AA alkaline batteries. The EBF-85 can be paired up with the matching soap dispenser, the ESD-800.
Options on this configuration: 8" Trim Plate (8).
Features
- 8" Trim Plate, Battery Power Supply, Below Deck Thermostatic Mixing Valve, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
- Chrome plated finish
- Commercial Grade Faucet
- ADA Compliant
- Cast Brass Spout
- Quick Connect Fittings
- Integrated Water Shut-off
- Wireless Settings Adjustment
- On-demand or Metered activation
- Hygienic Line Flush
- Water Usage and Battery Strength Reporting
- Self-adapting Sensor
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet runs on battery power. Sloan states a battery life of 3 years 8,000 cycles/month. No transformer or wiring is required.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes a below deck thermostatic mixing valve. It is ASSE 1070 listed, so the delivered water temperature is limited even if the hot supply runs too hot.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.5 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor with a detection range of 4”-5”. It supports Bluetooth commissioning through the Sloan Connect app.
Specifications
-
Type: Sensor Faucet
-
MPN: EBF-85-8-BAT-BDT-CP-0.5GPM-MLM-BAA-FCT
-
Certifications: ADA, ASSE-1070, Buy American Act, CALGreen, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372
-
Lead-Free: Yes
-
Power Source: DC (Battery)
-
Power Supply Detail: Battery (BAT)
-
Battery Life: 3 years 8,000 cycles/month
-
Run Time (s): 30
-
Sensor Type: Infrared
-
Sensing Range (in): 4”-5”
-
Connectivity: Bluetooth
-
Centers: Single-Hole
-
Trim Plate: 8"
-
Mixing Valve: Below Deck Thermostatic Mixing Valve
-
Outlet Type: Multi-Laminar (Non-Aerating)
-
Body Height: Mid
-
Faucet Hole Size (min): 1-1/4"
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.5
