Sloan G2 BPW 8000 Exposed Battery-Powered Sensor Water Closet Flushometer (3.5 GPF), 1-1/2" Offset, with

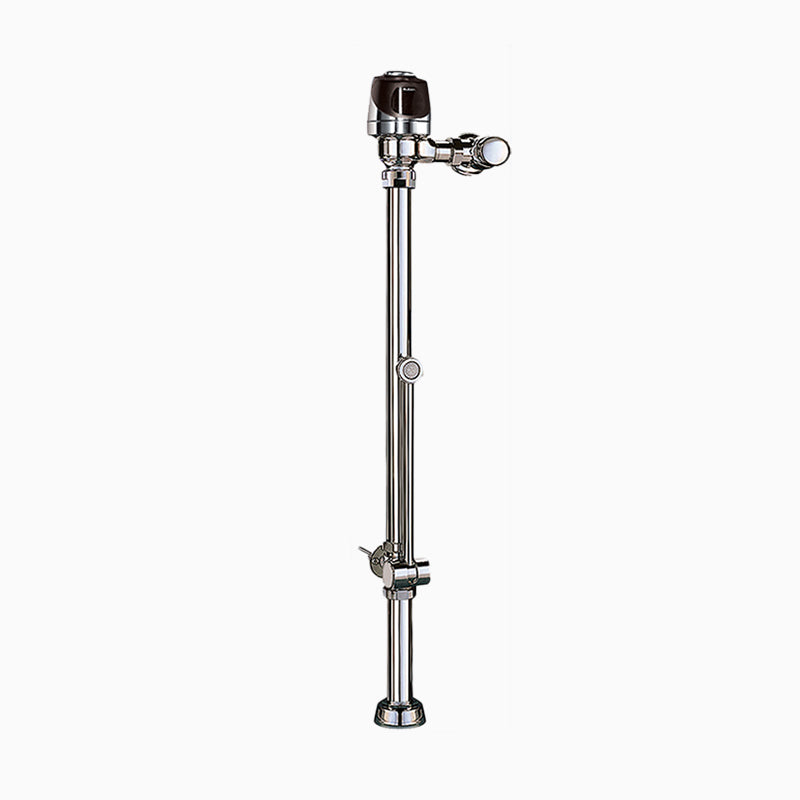

The Sloan G2 BPW 8000-3.5-CP-1-1/2-OFST is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Discover the G2 BPW 8000 flushometer for commercial facilities. Reliable, compliant, and efficient. Ideal for engineers and maintenance staff.

Options on this configuration: 1-1/2" Offset (OFST); 8000; W/. Sloan model number: G2 BPW 8000-3.5-CP-1-1/2-OFST. Sloan's own price-list description: G2 OPTIMA PLUS BPW 8000 O W / 1-1/2 OFST.

Features

• 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 1.5" Offset, Battery
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: G2 BPW 8000-3.5-CP-1-1/2-OFST
• Certifications: ADA, Buy American Act, IAPMO, UL, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 34.375"
• Volume per Flush (gal): 3.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
