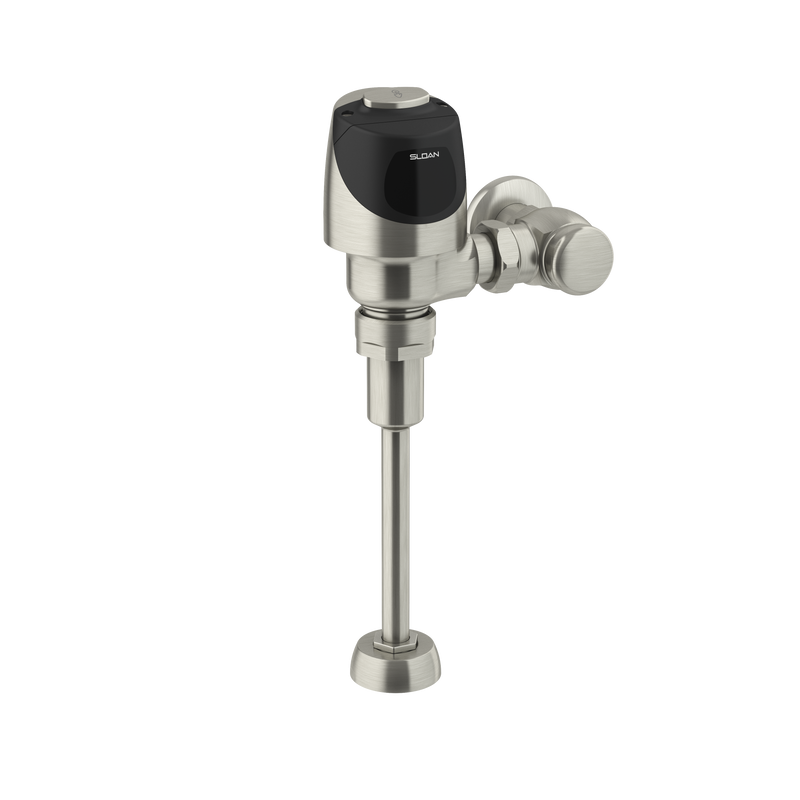

Sloan G2 8186 Exposed Battery-Powered Sensor Urinal Flushometer (1.5 GPF), Brushed Nickel

The Sloan G2 8186-1.5-BN is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 1.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

ADA-compliant sensor urinal flushometer with advanced detection. Fixed metering bypass ensures water conservation. Multiple models available.

Options on this configuration: 8186. Sloan model number: G2 8186-1.5-BN. Sloan's own price-list description: G2 OPTIMA PLUS 8186 PVDBN.

Features

• 1.5 gpf, Brushed Nickel Finish, Fixture Connection Top Spud, Single Flush, Battery
• ADA-compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Adjustable tailpiece to accommodate different height requirements
• High copper, low zinc brass castings for dezincification resistance
• Available in 0.5 gpf/1.9 Lpf, low consumption (1.0 gpf/3.8 Lpf), water saver (1.5 gpf/5.7 Lpf), and conventional (3.5 gpf/13.2 Lpf) models
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: G2 8186-1.5-BN
• Certifications: ADA, Buy American Act, BABA, IAPMO, UL, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.5
• Dual Flush: No
• Finish: Brushed Nickel
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Sensor Type: Infrared
