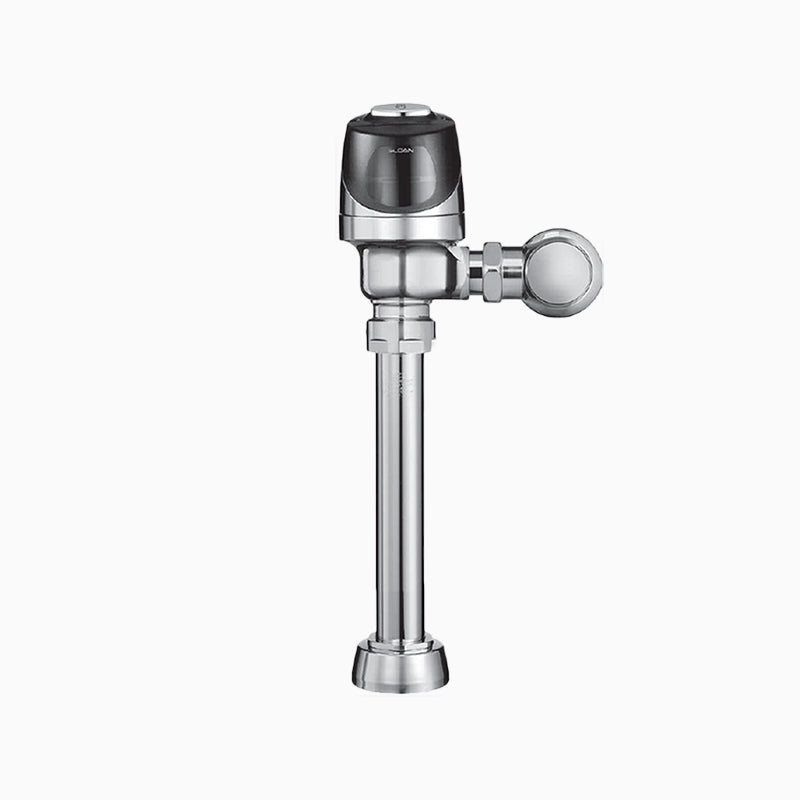

The Sloan G2 8113-3.5-CP is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
Sloan G2 8113 exposed sensor flushometer with lobular IR sensing, dezincification-resistant brass, and models from 1.28 to 3.5 gpf. ASSE 1037 compliant.
Options on this configuration: 8113. Sloan model number: G2 8113-3.5-CP. Sloan's own price-list description: G2 OPTIMA PLUS 8113.
Features
- 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery
- Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- User-friendly, three-second flush delay
- Adjustable tailpiece
- High copper, low zinc brass castings for dezincification resistance
- Available in low consumption (1.6 gpf/6.0 Lpf), water saver (3.5 gpf/13.2 Lpf), and high efficiency (1.28 gpf/4.8 Lpf) models
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Operation: Sensor
-
MPN: G2 8113-3.5-CP
-
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 16"
-
Volume per Flush (gal): 3.5
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: DC (Battery)
-
Sensor Type: Infrared
