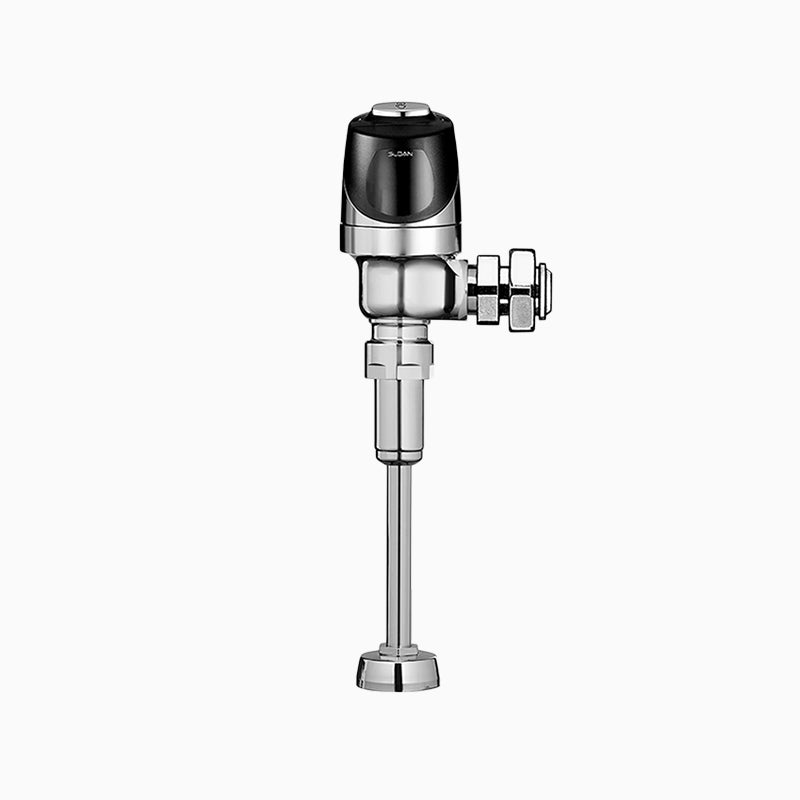

Sloan G2 8188 Exposed Battery-Powered Sensor Urinal Flushometer (1.0 GPF)

The Sloan G2 8188-1.0-XD-CP is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

G2 8188 flushometer: ASTM-compliant semi-red brass components, ASSE 1037 certified. Exposed sensor design for commercial urinals.

Options on this configuration: No Control Stop (XD); 8188. Sloan model number: G2 8188-1.0-XD-CP. Sloan's own price-list description: G2 OPTIMA PLUS 8188-1 XD.

Features

• 1.0 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, No Control Stop, Battery
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

What control stop ships with this valve?

None Included, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Body Material: Semi-Red Brass
• Operation: Sensor
• Control Stop: None Included
• MPN: G2 8188-1.0-XD-CP
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Volume per Flush (gal): 1.0
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
