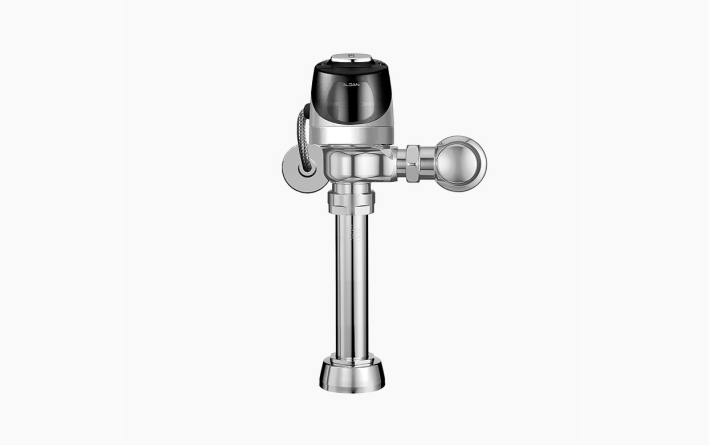

The Sloan G2 111-1.6-CP-HW is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Hands-free flushometer with PERMEX diaphragm and infrared sensor for commercial water closets. ADA compliant, low maintenance design.
Options on this configuration: Hardwired (HW). Sloan model number: G2 111-1.6-CP-HW.
Features
- 1.6 gpf, Polished Chrome Finish, Single Flush, 1" Control Stop, Electrical Override, Hardwired
- PERMEX® Synthetic Rubber Dual Filtered Flex Tube Diaphragm designed for improved life and reduced maintenance
- ADA Compliant Electronic Single Flush Line Powered Infrared Sensor or Automatic “No Hands” operation
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Latching Solenoid Operator
- Engineered Metal Cover with replaceable Lens Window
- User friendly three (3) second Flush Delay
- Line Powered with 6 VAC Step Down Transformer
- Infrared Sensor Range Adjustment Screw
- Initial Set-up Range Indicator Light (first 10 minutes)
- 1” I.P.S. Screwdriver Bak-Chek® Angle Stop
- Free Spinning, Vandal Resistant Stop Cap
- Adjustable Tailpiece, Spud Coupling and Flange for 1.5” Top Spud
- High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
- Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Flush Accuracy Controlled by CID™ Technology
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Sensor
-
MPN: G2 111-1.6-CP-HW
-
Certifications: ADA, Buy American Act, BABA, IAPMO
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Volume per Flush (gal): 1.6
-
Dual Flush: No
-
Finish: Polished Chrome
-
Vandal Resistant: Yes
-
Power Source: Hardwired AC
-
Sensor Type: Infrared
-
Override Type: Electrical Override
