Description

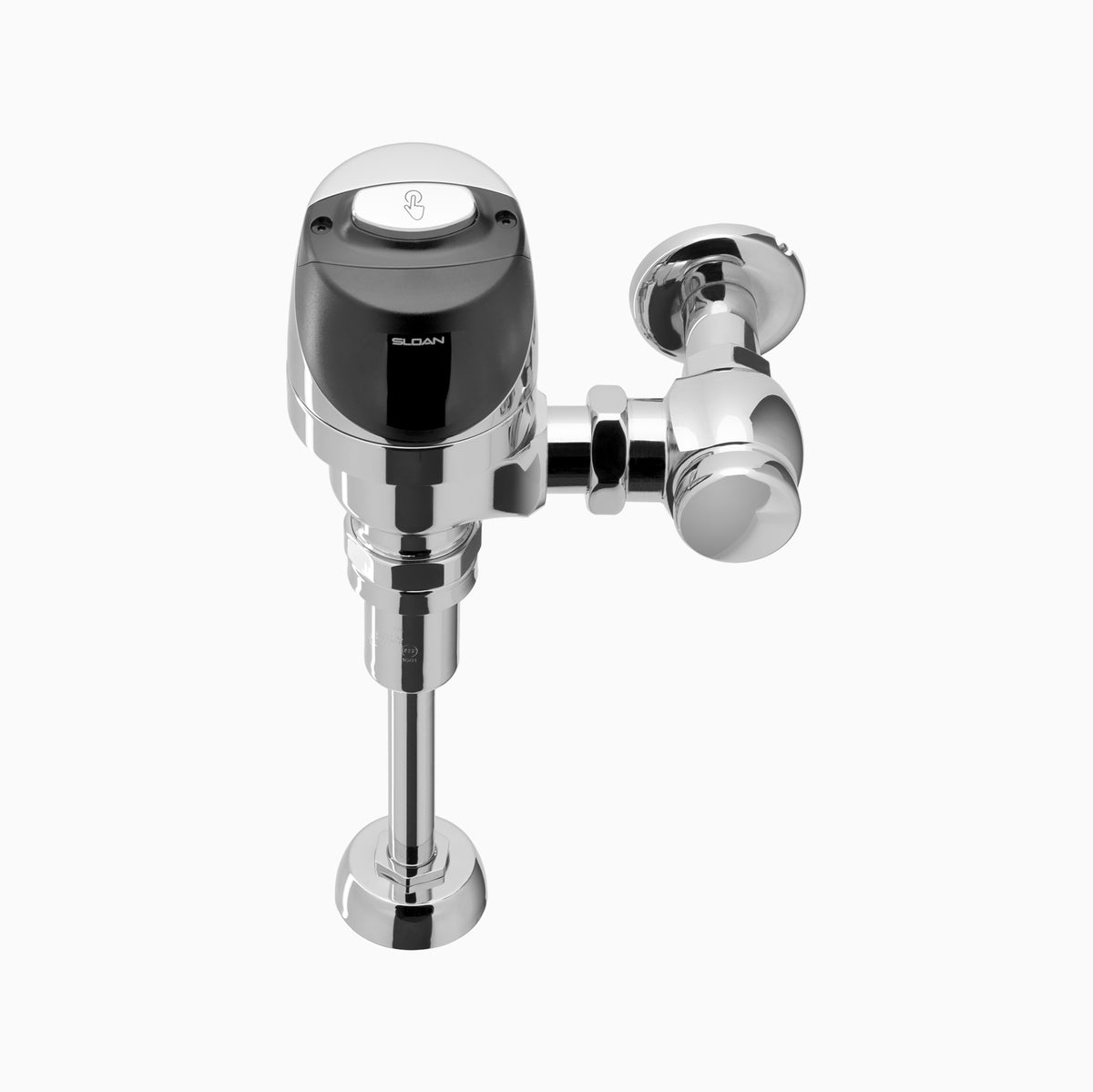

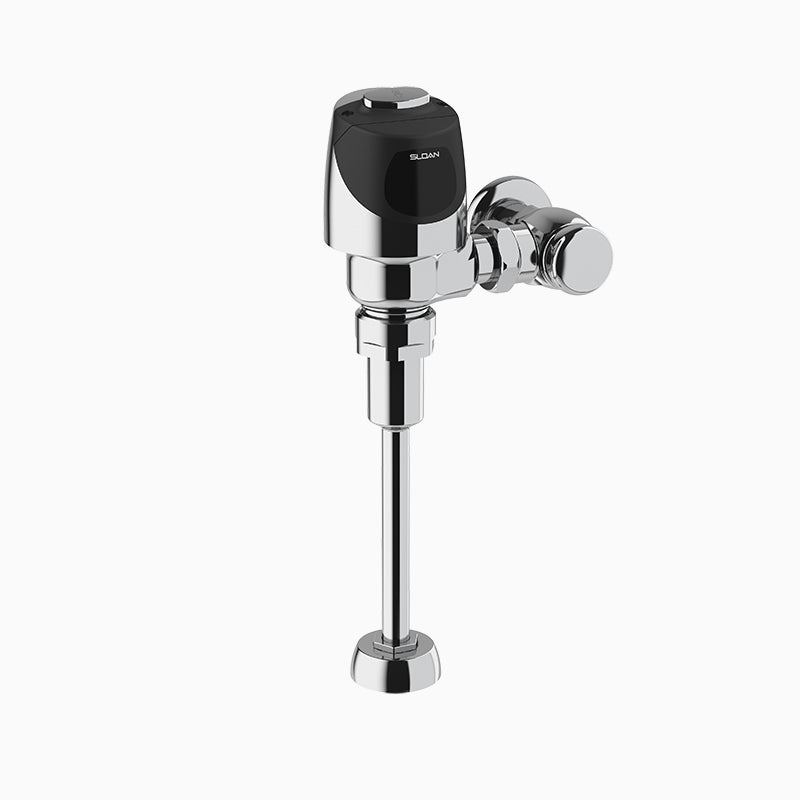

The Sloan ECOS 8186-0.25-CP-CN is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.25 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
ECOS 8186: Sensor urinal flushometer with .13 or .25 gpf efficiency. Infrared detection, 3-second delay, dezincification resistant. Compliant with ASSE 1037.
Options on this configuration: Carbon Neutral (CN). Sloan model number: ECOS 8186-0.25-CP-CN.
Features
- 0.25 gpf, Polished Chrome Finish, 0.75" Flush Connection, Fixture Connection Top Spud, Single Flush, Carbon Neutral, 0.75" Inlet, 3/4" Control Stop, Electrical Override, Battery, Infrared
- Water-efficient flush volume of either .13 gpf or .25 gpf
- Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- User-friendly, three-second flush delay
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: ECOS 8186-0.25-CP-CN
- Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 0.25
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: DC (Battery)
- Sensor Type: Infrared
- Override Type: Electrical Override
- Sensing Range (in): 15"-30"
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | ECOS 8186 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | Carbon Neutral (CN) | Fixture Served | Urinal |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 0.25 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 11.5" |
| Spud connection | Top Spud | Override type | Electrical Override |
| Power source | DC (Battery) | Sensing range in | 15"-30" |
| Sensor type | Infrared | — | — |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | ASSE-1037 |
Compare with similar products
| Fixture Served | Urinal
| Urinal
|
| Series | ECOS 8186
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 3/4"
| 3/4"
|
| Outlet Size | 3/4"
| 3/4"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Sensor
| Sensor
|
| Certifications | ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
