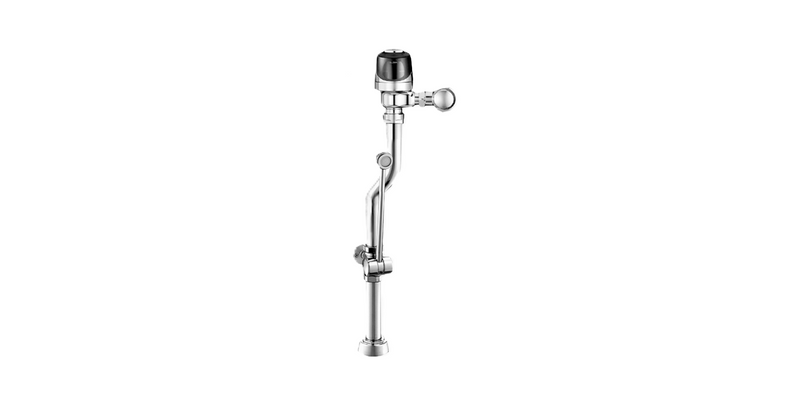

Sloan G2 BPW 8000 Exposed Battery-Powered Sensor Water Closet Flushometer (1.6 GPF), 2" Offset, with

The Sloan G2 BPW 8000-1.6-CP-2-OFST is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Discover the G2 BPW 8000 flushometer for commercial facilities. Reliable, compliant, and efficient. Ideal for engineers and maintenance staff.

Options on this configuration: 2" Offset (OFST); 8000; W/. Sloan model number: G2 BPW 8000-1.6-CP-2-OFST. Sloan's own price-list description: G2 OPTIMA PLUS BPW 8000-1.6 O W/2 IN OFS.

Features

• 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 2" Offset, Battery
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: G2 BPW 8000-1.6-CP-2-OFST
• Certifications: ADA, Buy American Act, IAPMO, UL, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 34.375"
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
