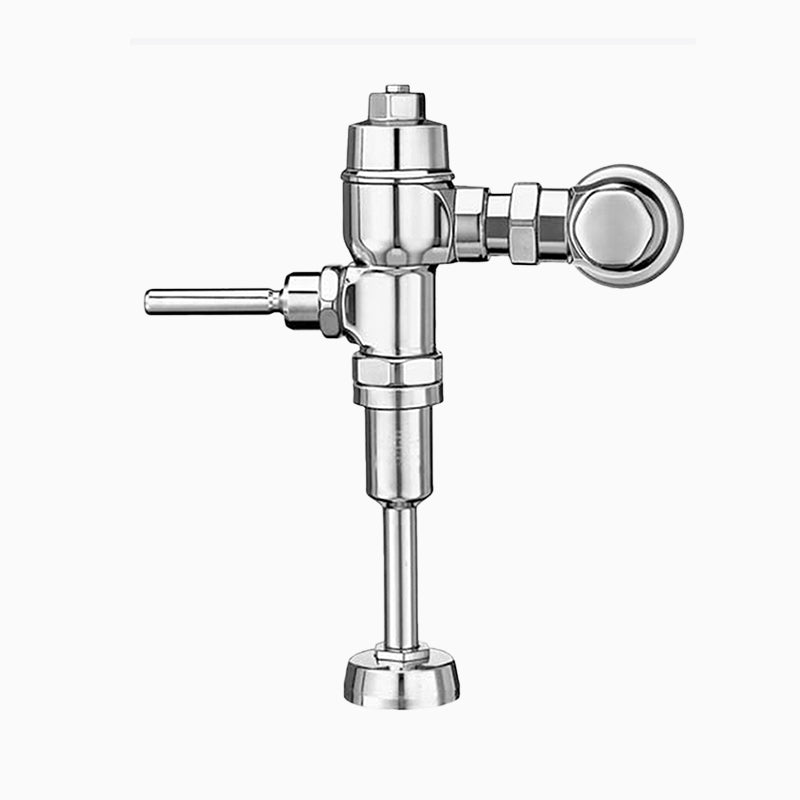

Sloan Naval 186-1.0 Exposed Manual Flushometer, 1.0 gpf, 1 in. Stop

The Sloan Naval 186-1 is a manual piston-type flush valve for a urinal. It delivers 1.0 gallons per flush, with an exposed body.

Exposed manual urinal flushometer set at 1.0 gpf with an adjustable range of 0.5 to 3.0 gpf. Bak-Chek control stop, ASSE 1037 compliant.

Options on this configuration: 1; IN; STOP. Sloan model number: Naval 186-1. Sloan's own price-list description: NAVAL 186-1 1 IN STOP.

Features

• Factory set flush volume of 1.0 gpf/3.8 Lpf has an adjustable range of 0.5 gpf/1.7 Lpf to 3.0 gpf/11.4 Lpf
• Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
• Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Naval 186-1
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 1.0
