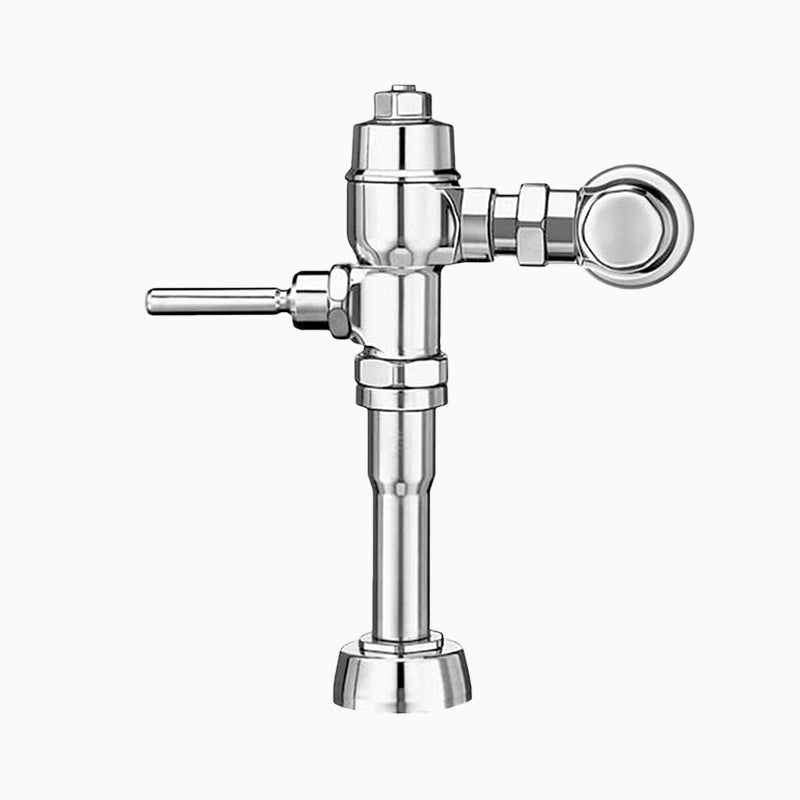

The Sloan NAVAL 180-1.0-CP is a manual piston-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a top spud connection at an exposed body. It features a red brass body.
Sloan NAVAL 180 exposed manual urinal flushometer. Factory set at 1.0 gpf with adjustable range, Bak-Chek control stop, ADA compliant.
Base configuration: no option suffixes on this model number (NAVAL 180-1.0-CP).
Features
- 1.0 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
- Factory set flush volume of 1.0 gpf/3.8 Lpf has an adjustable range of 0.5 gpf/1.7 Lpf to 3.0 gpf/11.4 Lpf
- Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
- Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/4"
-
Body Material: Red Brass
-
Operation: Manual
-
MPN: NAVAL 180-1.0-CP
-
Certifications: ADA, Buy American Act, ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 11.5"
-
Volume per Flush (gal): 1.0
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
