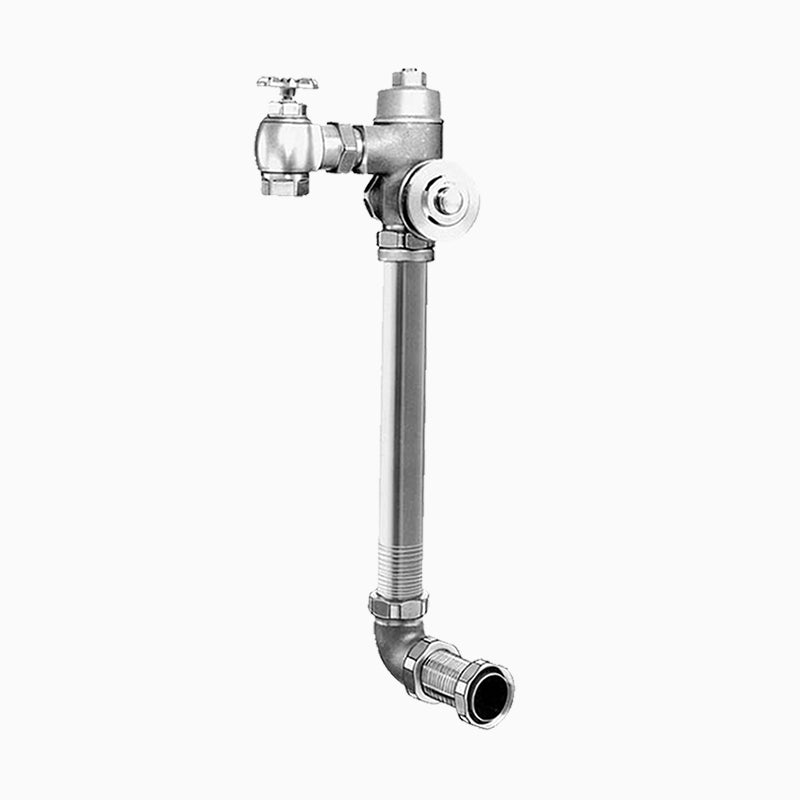

Sloan Naval 152 Concealed Manual Flushometer, 6-3/4" LDIM, 3" Metal Oscillating Handle, Ground Joint Control Stop

Roll over image to zoom in

Sloan Naval 152 Concealed Manual Flushometer, 6-3/4" LDIM, 3" Metal Oscillating Handle, Ground Joint Control Stop

Name: Sloan Naval 152 Concealed Manual Flushometer, 6-3/4" LDIM, 3" Metal Oscillating Handle, Ground Joint Control Stop
Brand: Sloan
SKU: 3141632
Price: 547.40 USD
Availability: InStock

Save $259.30

SloanSKU: 3141632

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

The Sloan Naval 152 is a manual piston-type flush valve for a water closet.

NAVAL 152 Concealed manual water closet flushometer with Bak-Chek control stop, Xpelor Metering By-Pass, and adjustable flush volume from 1.5 to 7.0 gpf.

Options on this configuration: 6-3/4" L Dimension (LDIM); 3" Metal Oscillating Handle (L3); Ground Joint Control Stop (GJ); Less Vacuum Breaker (order separately) (XYV); Whitworth Thread (WWT); SWFC. Sloan's own price-list description: NAVAL 152 6 3/4 LDIM XYV WWT SWFC GJ L3.

Features

Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?: Per Sloan's own spec, it serves a water closet.
Is this exposed or concealed, and does it need a wall box?: Concealed -- the body sits behind the wall, with only the cover or trim visible.
What kind of handle does this have?: A 3" Metal Oscillating handle, per Sloan's own spec for this model.
Is this ADA, WaterSense, or ASSE 1037 listed?: Yes -- Sloan lists it as ASSE-1037.
What control stop ships with this valve?: Ground Joint, per Sloan's own spec for this model.

Specifications

Type: Flushometer
Operation: Manual
Control Stop: Ground Joint
MPN: Naval 152
Certifications: ASSE-1037
Fixture Served: Water Closet
Body Style: Concealed
L Dimension (in): 6-3/4"
Handle Style: 3" Metal Oscillating
Backflow Device: None (Order Separately)
