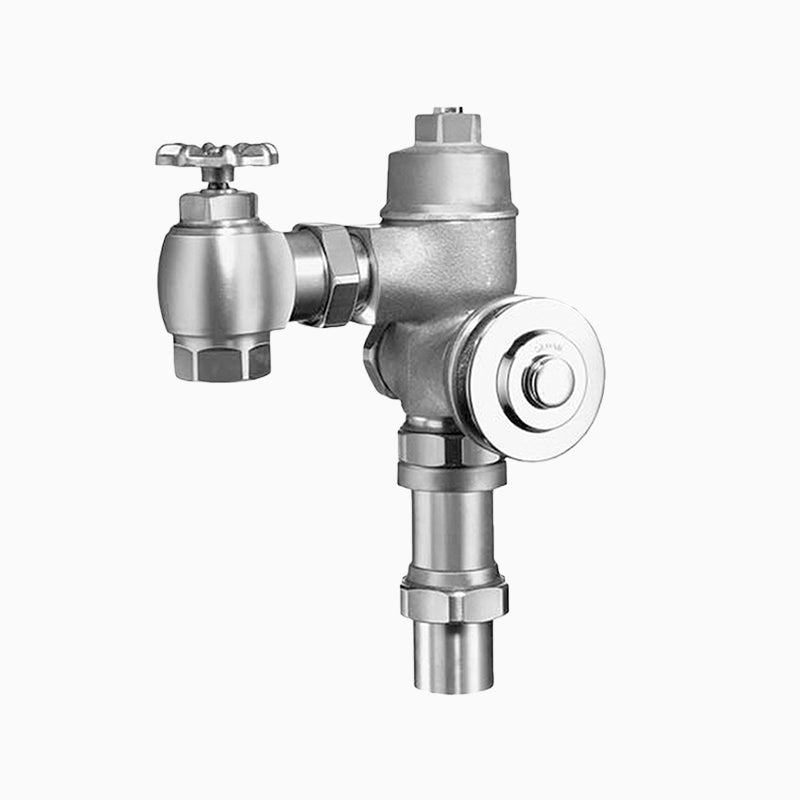

The Sloan NAVAL 150-3.5-RB-WB-2-3/4-LDIM is a manual piston-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a concealed body. It features a red brass body.
Concealed manual water closet flushometer with Bak-Chek control stop and Xpelor Metering By-Pass. Factory set at 1.6 or 3.5 gpf. ASSE 1037 compliant.
Options on this configuration: 2-3/4" L Dimension (LDIM); Wall Box Version (WB). Sloan model number: NAVAL 150-3.5-RB-WB-2-3/4-LDIM.
Features
- 3.5 gpf, Rough Brass Finish, Fixture Connection Not Included, Single Flush, 2.75" L Dimension, Standard size (WB-1-A wall box not included- order separately) Wall Box
- Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
- Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
- Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible. A standard wall box is required but not included -- order it separately.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Body Material: Red Brass
-
Operation: Manual
-
MPN: NAVAL 150-3.5-RB-WB-2-3/4-LDIM
-
Certifications: Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Concealed
-
Rough-In (in): 24"
-
L Dimension (in): 2-3/4"
-
Volume per Flush (gal): 3.5
-
Dual Flush: No
-
Finish: Unfinished (Rough Brass)
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Wall Box Type: Standard (Order Separately)
