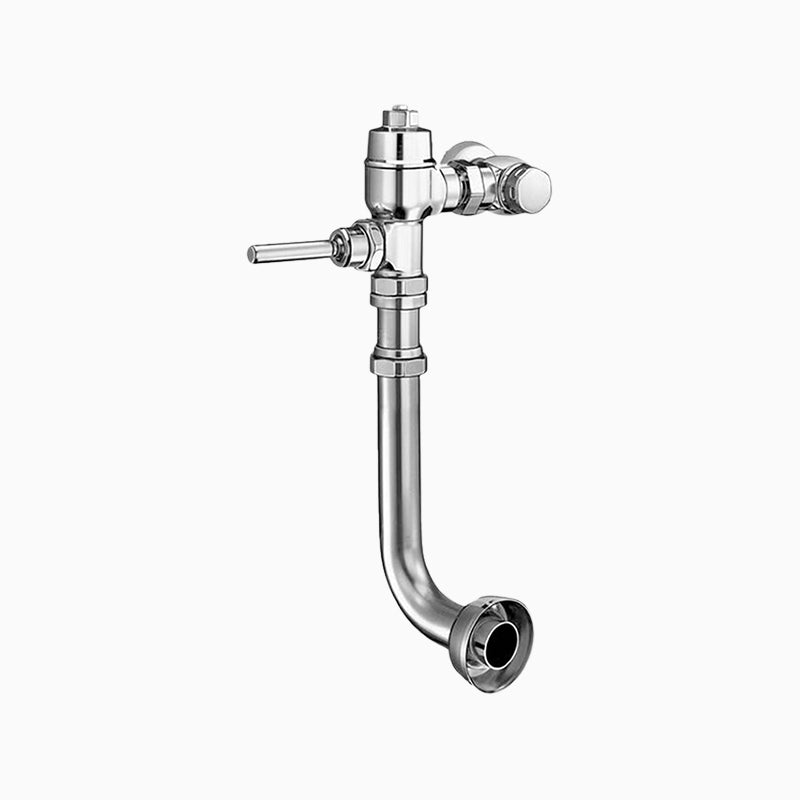

The Sloan NAVAL 121-1.6-CP-WWT is a manual piston-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a rear spud connection at an exposed body. It features a red brass body.
Exposed manual water closet flushometer with Bak-Chek control stop, Xpelor Metering By-Pass, and field-adjustable flush volume from 1.5 to 7.0 gpf.
Options on this configuration: Whitworth Thread (WWT). Sloan model number: NAVAL 121-1.6-CP-WWT.
Features
- 1.6 gpf, Polished Chrome Finish, Fixture Connection Rear Spud, Single Flush, Whitworth Thread
- Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
- Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
- Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Red Brass
-
Operation: Manual
-
MPN: NAVAL 121-1.6-CP-WWT
-
Certifications: ADA, Buy American Act, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Spud Connection: Rear Spud
-
Rough-In (in): 16"
-
Volume per Flush (gal): 1.6
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
