Description

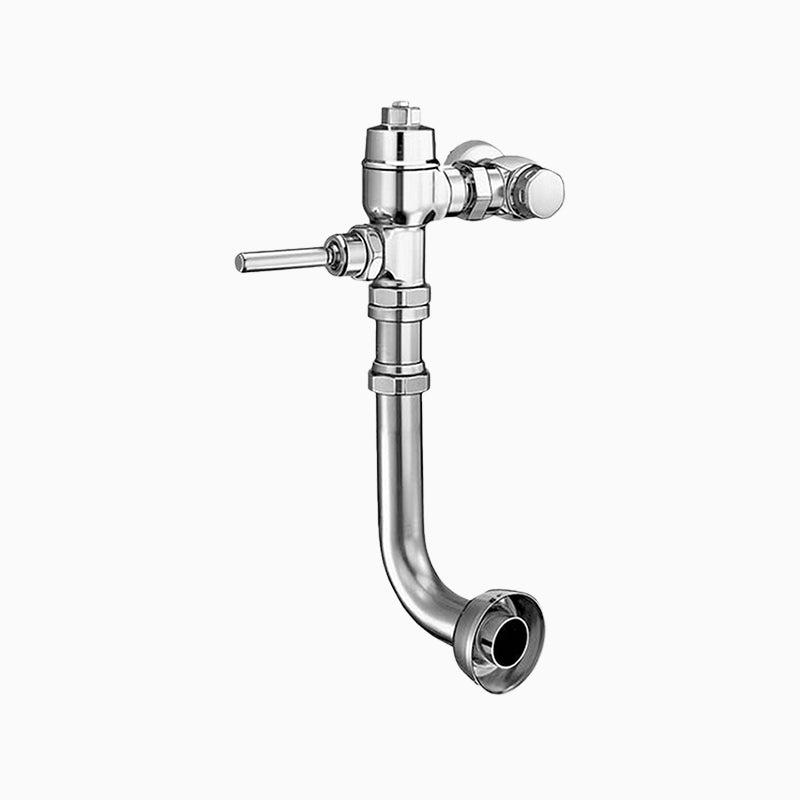

The Sloan NAVAL 120-1.6-GJ-CP is a manual piston-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a rear spud connection at an exposed body. It features a red brass body.
Sloan NAVAL 120 exposed manual flushometer with Bak-Chek control stop, Xpelor Metering By-Pass, and adjustable flush volume from 1.5 to 7.0 gpf.
Options on this configuration: Ground Joint Control Stop (GJ). Sloan model number: NAVAL 120-1.6-GJ-CP.
Features
- 1.6 gpf, Polished Chrome Finish, Fixture Connection Rear Spud, Single Flush, Ground Joint Control Stop
- Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
- Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
- Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
- What control stop ships with this valve?
- Ground Joint, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Red Brass
- Operation: Manual
- Control Stop: Ground Joint
- MPN: NAVAL 120-1.6-GJ-CP
- Certifications: ADA, Buy American Act, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Rear Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | NAVAL 120 | Device Type | Flushometer |
| Body Material | Red Brass | Operation | Manual |
| Options | Ground Joint Control Stop (GJ) | Shutoff | Ground Joint |
| Fixture Served | Water Closet | Body style | Exposed |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 11.5" | Spud connection | Rear Spud |
Certifications & Standards
| ADA | Buy American Act |
| ASSE-1037 | — |
Compare with similar products
| Shutoff | Ground Joint
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | NAVAL 120
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Red Brass
| Semi-Red Brass
|
| Operation | Manual
| Manual
|
| Certifications | ADA, Buy American Act, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Ground Joint Control Stop (GJ)
| No Control Stop (XD)
|
