Sloan Naval 110 Exposed Manual Flushometer, Less Vacuum Breaker, Angle Stop Extended Bumper, Whitworth Thread, 17 Option GA 85%

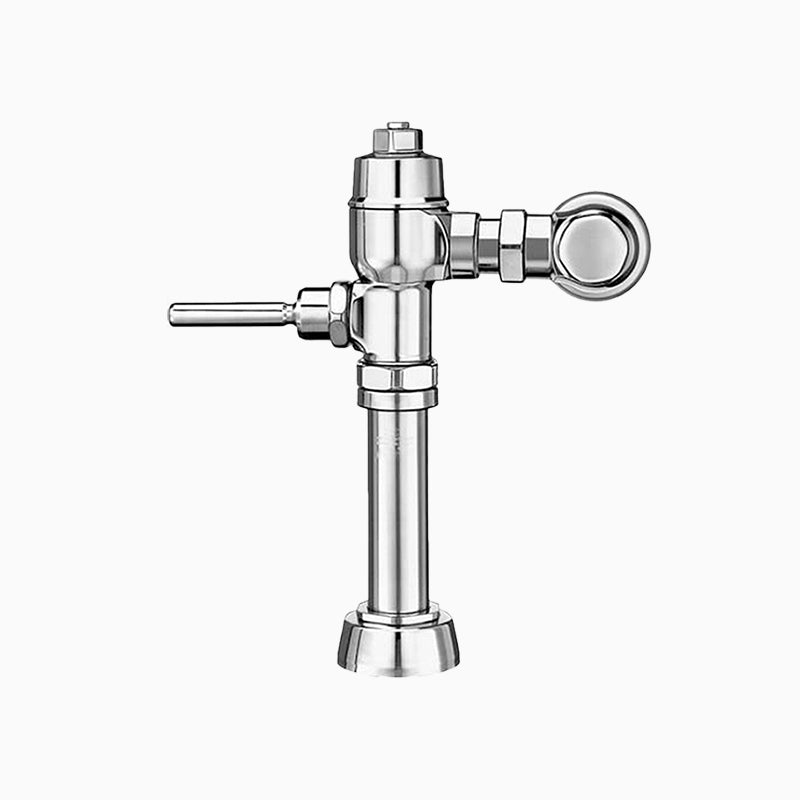

The Sloan Naval 110 is a manual piston-type flush valve for a water closet.

Sloan NAVAL 110 exposed manual flushometer with Bak-Chek control stop and Xpelor Metering By-Pass. Factory set at 1.6 or 3.5 gpf. ASSE 1037 compliant.

Options on this configuration: Less Vacuum Breaker (order separately) (XYV); Angle Stop Extended Bumper (YG); Whitworth Thread (WWT); 17; GA; 85%. Sloan's own price-list description: NAVAL 110 XYV YG WWT 17 GA 85%.

Features

• Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
• Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
• Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Sweat solder kit not provided, order separately if required.

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Naval 110
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Backflow Device: None (Order Separately)
