Description

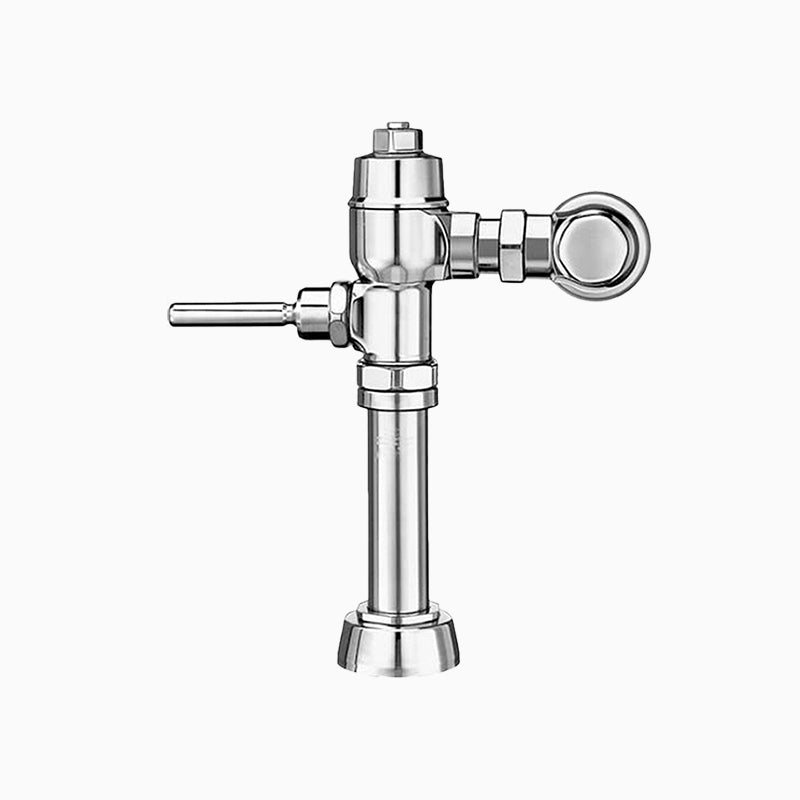

The Sloan Naval 110 is a manual piston-type flush valve for a water closet.
Sloan NAVAL 110 exposed manual flushometer with Bak-Chek control stop and Xpelor Metering By-Pass. Factory set at 1.6 or 3.5 gpf. ASSE 1037 compliant.
Options on this configuration: Ground Joint Control Stop (GJ); Less Vacuum Breaker (order separately) (XYV); Less Flush Connection (L/FC); Whitworth Thread (WWT); F20A; W/SPUD; FL. Sloan's own price-list description: NAVAL 110 GJ XYV WWT F20A L/FC W/SPUD FL.
Features
- Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
- Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
- Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Sweat solder kit not provided, order separately if required.
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- Ground Joint, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Operation: Manual
- Control Stop: Ground Joint
- MPN: Naval 110
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Backflow Device: None (Order Separately)
Details
| Series | NAVAL 110 | Device Type | Flushometer |
| Operation | Manual | Options | Ground Joint Control Stop (GJ), Less Vacuum Breaker (order separately) (XYV), Less Flush Connection (L/FC), Whitworth Thread (WWT), F20A, W/SPUD, FL |
| Shutoff | Ground Joint | Fixture Served | Water Closet |
| Backflow device | None (Order Separately) | Body style | Exposed |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Shutoff | Ground Joint
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | NAVAL 110
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Ground Joint Control Stop (GJ), Less Vacuum Breaker (order separately) (XYV), Less Flush Connection (L/FC), Whitworth Thread (WWT), F20A, W/SPUD, FL
| No Control Stop (XD)
|
