Description

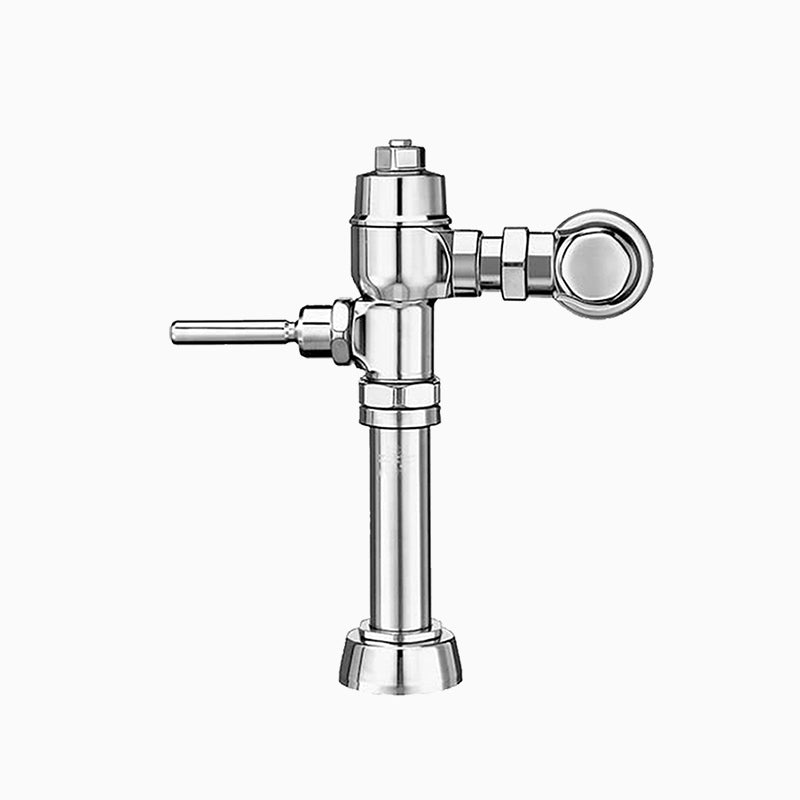

The Sloan Naval 111 is a manual piston-type flush valve for a water closet.
NAVAL 111 exposed manual water closet flushometer with Bak-Chek control stop, Xpelor Metering By-Pass, and adjustable flush volume from 1.5 to 7.0 gpf.
Options on this configuration: Less Vacuum Breaker (order separately) (XYV); Whitworth Thread (WWT); W/CN89; COVER. Sloan's own price-list description: NAVAL 111 XYV WWT W/CN89 COVER.
Features
- Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
- Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
- Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Sweat solder kit not provided, order separately if required.
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: Naval 111
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Backflow Device: None (Order Separately)
Details
| Series | NAVAL 111 | Device Type | Flushometer |
| Operation | Manual | Options | Less Vacuum Breaker (order separately) (XYV), Whitworth Thread (WWT), W/CN89, COVER |
| Fixture Served | Water Closet | Backflow device | None (Order Separately) |
| Body style | Exposed | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | NAVAL 111
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Less Vacuum Breaker (order separately) (XYV), Whitworth Thread (WWT), W/CN89, COVER
| No Control Stop (XD)
|
