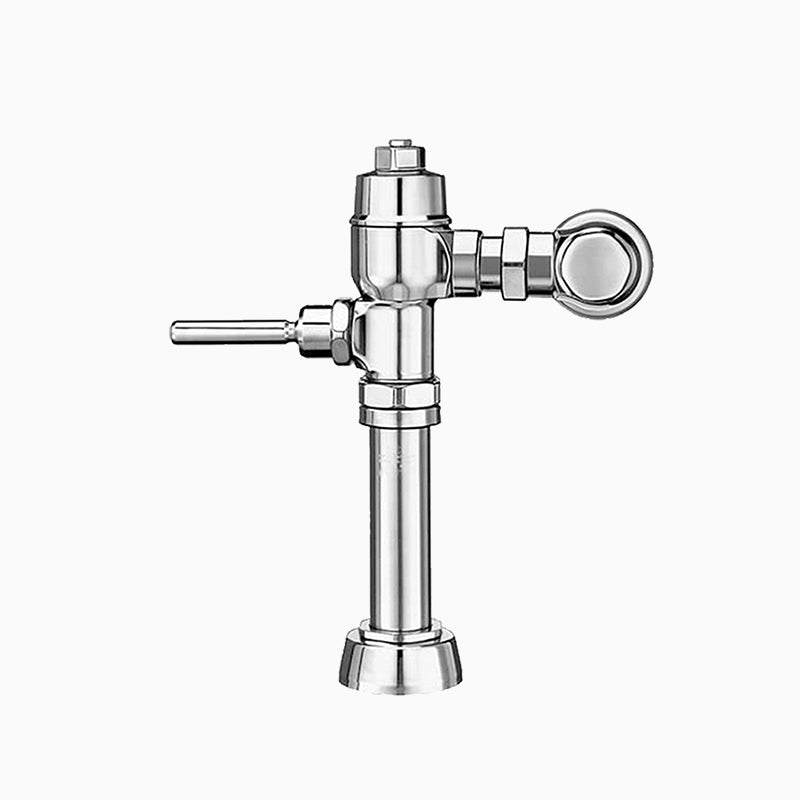

The Sloan NAVAL 111-1.6-CP-XYV is a manual piston-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a red brass body.
NAVAL 111 exposed manual water closet flushometer with Bak-Chek control stop, Xpelor Metering By-Pass, and adjustable flush volume from 1.5 to 7.0 gpf.
Options on this configuration: Less Vacuum Breaker (order separately) (XYV). Sloan model number: NAVAL 111-1.6-CP-XYV.
Features
- 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Less Vacuum Breaker
- Non-hold-open oscillating handle, Bak-Chek™ control stop and self-cleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
- Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
- Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Sweat solder kit not provided, order separately if required.
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Red Brass
- Operation: Manual
- MPN: NAVAL 111-1.6-CP-XYV
- Certifications: ADA, Buy American Act, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Polished Chrome
- Backflow Device: None (Order Separately)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | NAVAL 111 | Device Type | Flushometer |
| Body Material | Red Brass | Operation | Manual |
| Options | Less Vacuum Breaker (order separately) (XYV) | Fixture Served | Water Closet |
| Backflow device | None (Order Separately) | Body style | Exposed |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 11.5" | Spud connection | Top Spud |
Certifications & Standards
| ADA | Buy American Act |
| ASSE-1037 | — |
