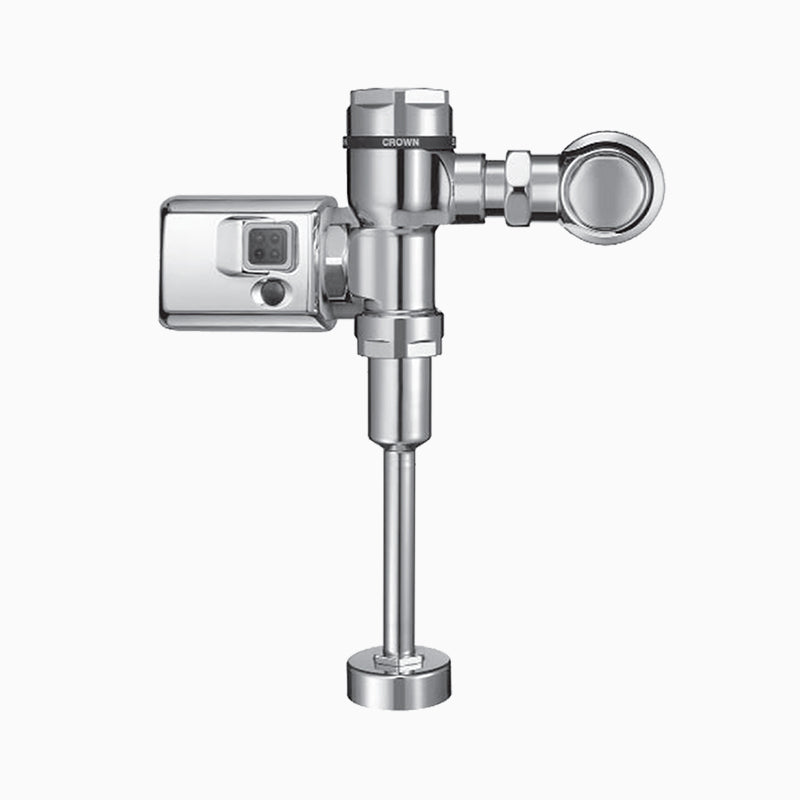

The Sloan Crown 186-0.125 is a sensor-operated piston-type flush valve for a urinal. It delivers 0.125 gallons per flush, with an exposed body.
CROWN 186 SMO flushometer: ASTM-compliant semi-red brass construction. Meets ASSE 1037 standards for commercial urinal applications. Explore specs and order today.
Options on this configuration: W/18"; VB. Sloan model number: Crown 186-0.125. Sloan's own price-list description: CROWN 186-0.125 SMO W/18" VB.
Features
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Sensor
- MPN: Crown 186-0.125
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 0.125
- Power Source: DC (Battery)
Details
| Series | CROWN 186 SMO | Device Type | Flushometer |
| Operation | Sensor | Options | W/18", VB |
| Fixture Served | Urinal | Body style | Exposed |
| Cycle volume gal | 0.125 gal | Power source | DC (Battery) |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
|
| Series | CROWN 186 SMO
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Sensor
| Sensor
|
| Certifications | ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
