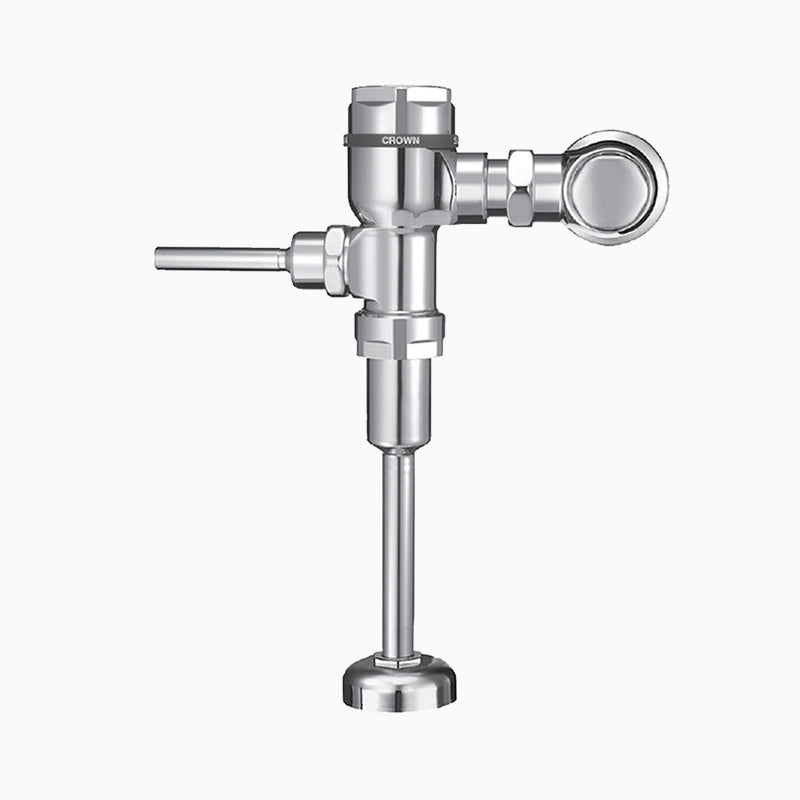

The Sloan Crown 186-0.25 is a manual piston-type flush valve for a urinal. It delivers 0.25 gallons per flush, with an exposed body.
Sloan CROWN 186 exposed manual urinal flushometer, ADA compliant, vandal-resistant stop cap, and dezincification-resistant brass construction.
Options on this configuration: NOR; W/24"; VB. Sloan model number: Crown 186-0.25. Sloan's own price-list description: CROWN 186-0.25 NOR W/24" VB.
Features
- Flush volumes to meet water-efficiency goals
- Unique cover design isolates threads from water source, protecting threads from harsh water conditions
- Fixed volume piston with filtered O-ring bypass
- ADA-compliant, metal oscillating, non-hold open handle with triple seal handle packing keeps fixture from exceeding intended flush volume
- Locking, vandal-resistant stop cap prevents tampering
- Adjustable tailpiece accommodates different widths
- High copper, low zinc brass casting for dezincification resistance ensures long life
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: Crown 186-0.25
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 0.25
- Vandal Resistant: Yes
Details
| Series | CROWN 186 | Device Type | Flushometer |
| Operation | Manual | Options | NOR, W/24", VB |
| Fixture Served | Urinal | Body style | Exposed |
| Cycle volume gal | 0.25 gal | Vandal resistant | Yes |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
|
| Series | CROWN 186
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | NOR, W/24", VB
| No Control Stop (XD)
|
