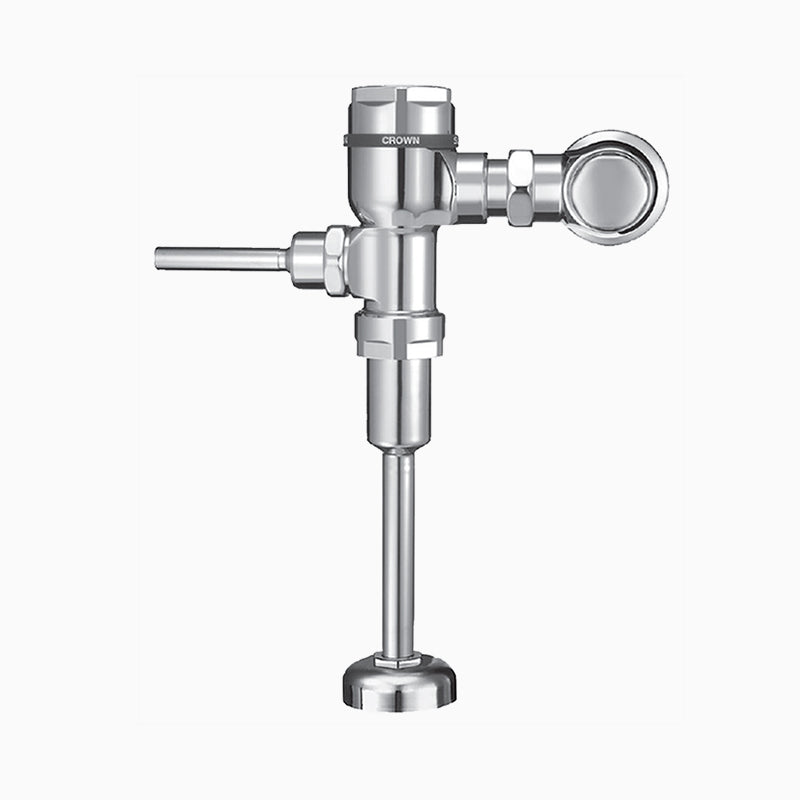

Sloan Crown 186-0.25 Exposed Manual Flushometer, 0.25 gpf, Option NOR with 13" Vacuum Breaker

The Sloan Crown 186-0.25 is a manual piston-type flush valve for a urinal. It delivers 0.25 gallons per flush, with an exposed body.

Sloan CROWN 186 exposed manual urinal flushometer, ADA compliant, vandal-resistant stop cap, and dezincification-resistant brass construction.

Options on this configuration: NOR; W/13"; VB. Sloan model number: Crown 186-0.25. Sloan's own price-list description: CROWN 186-0.25 NOR W/13" VB.

Features

• Flush volumes to meet water-efficiency goals
• Unique cover design isolates threads from water source, protecting threads from harsh water conditions
• Fixed volume piston with filtered O-ring bypass
• ADA-compliant, metal oscillating, non-hold open handle with triple seal handle packing keeps fixture from exceeding intended flush volume
• Locking, vandal-resistant stop cap prevents tampering
• Adjustable tailpiece accommodates different widths
• High copper, low zinc brass casting for dezincification resistance ensures long life
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Crown 186-0.25
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 0.25
• Vandal Resistant: Yes
