Description

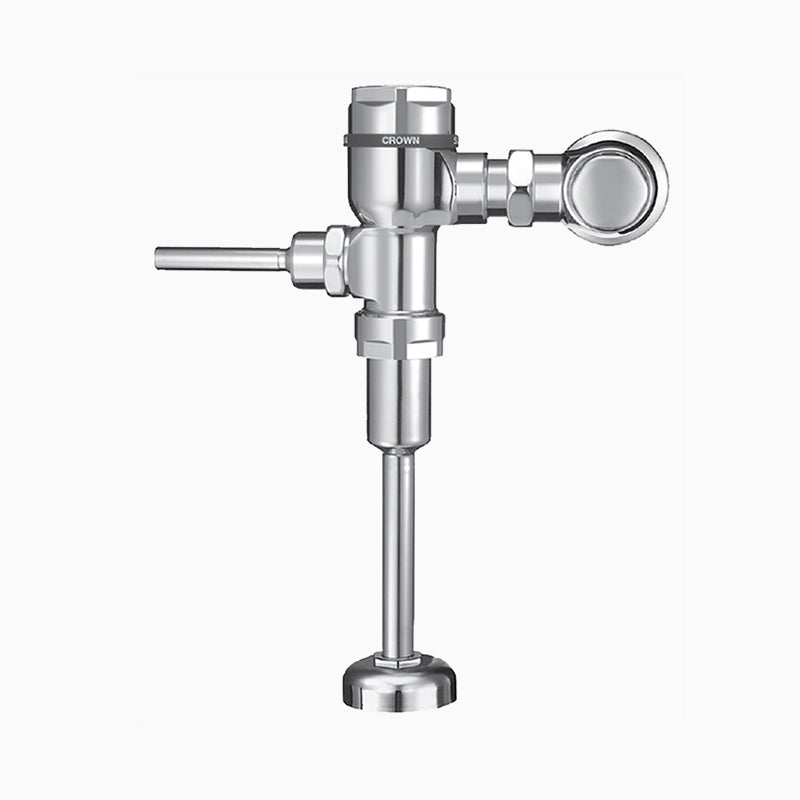

The Sloan CROWN 186-0.5-GJ-CP is a manual piston-type flush valve for a urinal. It delivers 0.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
Sloan CROWN 186 exposed manual urinal flushometer, ADA compliant, vandal-resistant stop cap, and dezincification-resistant brass construction.
Options on this configuration: Ground Joint Control Stop (GJ). Sloan model number: CROWN 186-0.5-GJ-CP.
Features
- 0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Ground Joint Control Stop
- Flush volumes to meet water-efficiency goals
- Unique cover design isolates threads from water source, protecting threads from harsh water conditions
- Fixed volume piston with filtered O-ring bypass
- ADA-compliant, metal oscillating, non-hold open handle with triple seal handle packing keeps fixture from exceeding intended flush volume
- Locking, vandal-resistant stop cap prevents tampering
- Adjustable tailpiece accommodates different widths
- High copper, low zinc brass casting for dezincification resistance ensures long life
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as WaterSense and ASSE-1037.
- What control stop ships with this valve?
- Ground Joint, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Operation: Manual
- Control Stop: Ground Joint
- Country of Origin: USA
- MPN: CROWN 186-0.5-GJ-CP
- Certifications: Buy American Act, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 0.5
- Dual Flush: No
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | CROWN 186 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Manual |
| Options | Ground Joint Control Stop (GJ) | Shutoff | Ground Joint |
| Fixture Served | Urinal | Body style | Exposed |
| Coating | Polished Chrome | Cycle volume gal | 0.5 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 11.5" | Spud connection | Top Spud |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| Buy American Act | IAPMO |
| WaterSense | ASSE-1037 |
Compare with similar products
| Shutoff | Ground Joint
| None Included
|
| Fixture Served | Urinal
| Water Closet
|
| Series | CROWN 186
| SLOAN 112
|
| Country Of Origin | USA
| USA
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 3/4"
| 1"
|
| Outlet Size | 3/4"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Manual
| Manual
|
| Certifications | Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Ground Joint Control Stop (GJ)
| No Control Stop (XD)
|
