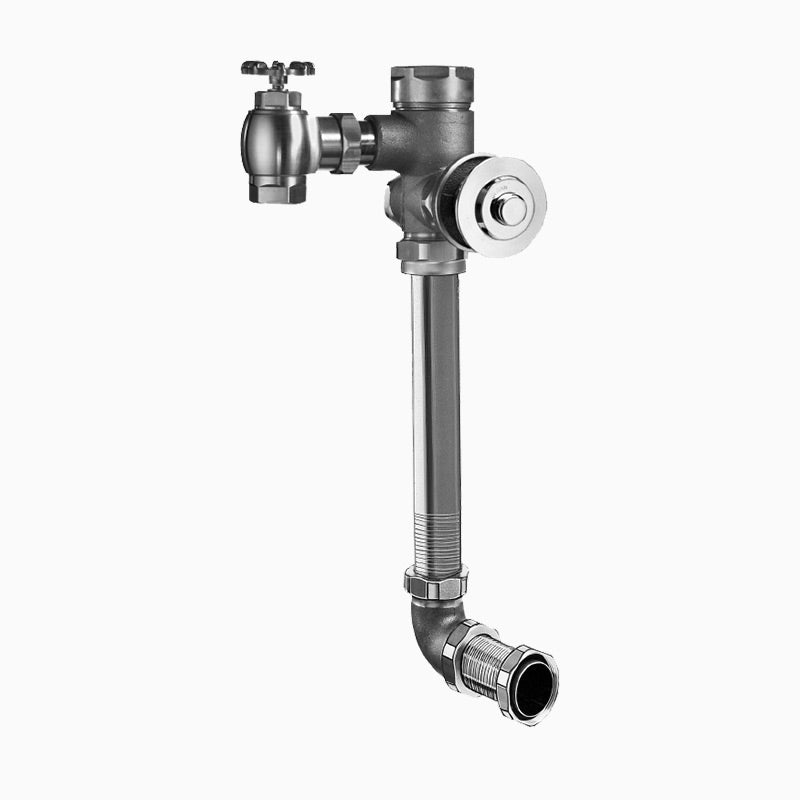

Sloan Crown 152-1.28 Concealed Manual Flushometer, 1.28 gpf, 10-3/4" LDIM

The Sloan Crown 152-1.28 is a manual piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a concealed body.

Sloan CROWN 152 concealed manual water closet flushometer. Semi-Red Brass construction, ASSE 1037 compliant.

Options on this configuration: 10-3/4" L Dimension (LDIM); NOR. Sloan model number: Crown 152-1.28. Sloan's own price-list description: CROWN 152-1.28 10 3/4 LDIM NOR.

Features

• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Crown 152-1.28
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• L Dimension (in): 10-3/4"
• Volume per Flush (gal): 1.28
