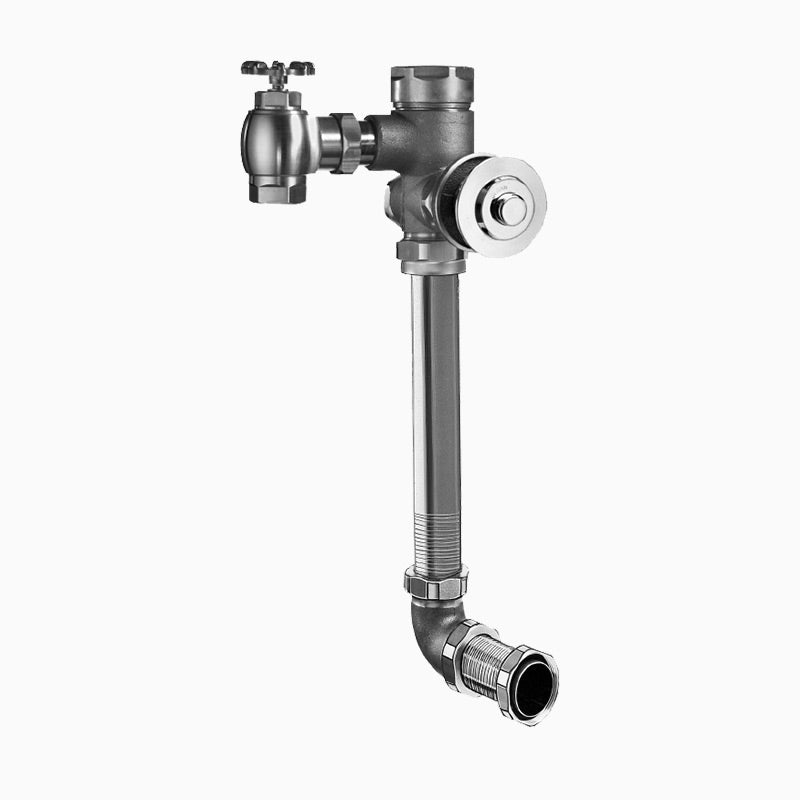

The Sloan CROWN 152-1.28-RB-7-3/4-LDIM is a manual piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.
Sloan CROWN 152 concealed manual water closet flushometer. Semi-Red Brass construction, ASSE 1037 compliant.
Options on this configuration: 7-3/4" L Dimension (LDIM). Sloan model number: CROWN 152-1.28-RB-7-3/4-LDIM.
Features
- 1.28 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 7.75" L Dimension
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as WaterSense and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Operation: Manual
- Country of Origin: USA
- MPN: CROWN 152-1.28-RB-7-3/4-LDIM
- Certifications: Buy American Act, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Spud Connection: Rear Spud
- Rough-In (in): 24"
- L Dimension (in): 7-3/4"
- Volume per Flush (gal): 1.28
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | CROWN 152 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Manual |
| Options | 7-3/4" L Dimension (LDIM) | Fixture Served | Water Closet |
| Body style | Concealed | Coating | Unfinished (Rough Brass) |
| Cycle volume gal | 1.28 gal | Dual flush | No |
| L dimension in | 7-3/4" | Operating pressure min psi | 15 PSI |
| Rough in in | 24" | Spud connection | Rear Spud |
Certifications & Standards
| Buy American Act | IAPMO |
| WaterSense | ASSE-1037 |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | CROWN 152
| SLOAN 112
|
| Country Of Origin | USA
| USA
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Manual
| Manual
|
| Certifications | Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 7-3/4" L Dimension (LDIM)
| No Control Stop (XD)
|
