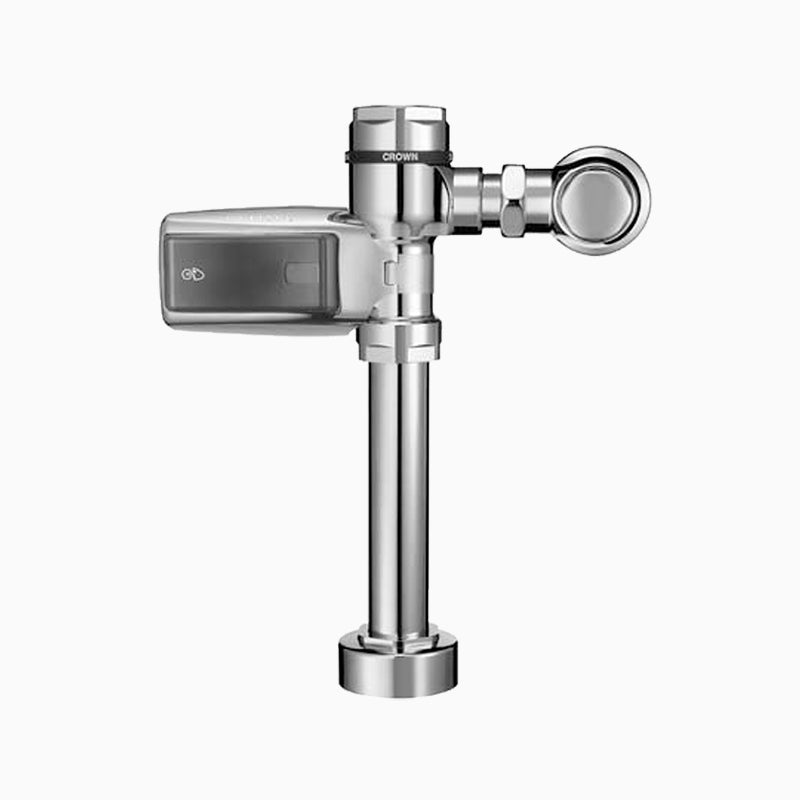

The Sloan CROWN 111 SMOOTH-1.28-CP-TMO is a sensor-operated piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
Crown 111 Smooth flushometer: ASTM-compliant semi-red brass construction for commercial water closets. Meets ASSE 1037 standards. Explore our durable, efficient solution.
Options on this configuration: Hardwired (HW); True Mechanical Override (TMO). Sloan model number: CROWN 111 SMOOTH-1.28-CP-TMO.
Features
- 1.28 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 1" Control Stop, True Mechanical Override, Hardwired
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: CROWN 111 SMOOTH-1.28-CP-TMO
- Certifications: ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 1.28
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: Hardwired AC
- Override Type: True Mechanical Override
- Sensing Range (in): 26"-32"
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | CROWN 111 SMOOTH | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | Hardwired (HW), True Mechanical Override (TMO) | Fixture Served | Water Closet |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 1.28 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 11.5" |
| Spud connection | Top Spud | Override type | True Mechanical Override |
| Power source | Hardwired AC | Sensing range in | 26"-32" |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | WaterSense |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
|
| Series | CROWN 111 SMOOTH
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 3/4"
|
| Outlet Size | 1-1/2"
| 3/4"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Sensor
| Sensor
|
| Certifications | ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
