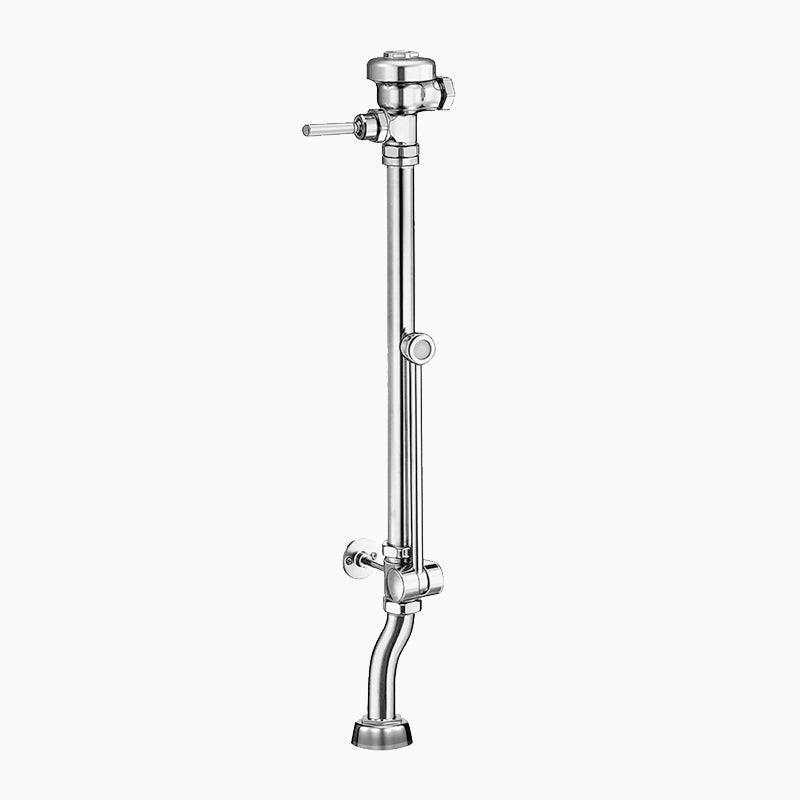

The Sloan REGAL BPW 1150-1.6-XL-L/STOP-CP is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
Sloan REGAL BPW 1150 exposed manual bedpan washer flushometer. ASSE 1037 compliant with semi-red brass construction. ADA and BAA compliant.
Options on this configuration: Less Control Stop (order separately) (L/STOP); XL Sweat Solder Adapter Kit (XL). Sloan model number: REGAL BPW 1150-1.6-XL-L/STOP-CP.
Features
- 1.6 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Less Control Stop
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
- What control stop ships with this valve?
- None (Order Separately), per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Operation: Manual
- Control Stop: None (Order Separately)
- MPN: REGAL BPW 1150-1.6-XL-L/STOP-CP
- Certifications: ADA, Buy American Act, BABA, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 26.5"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | REGAL BPW 1150 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Manual |
| Options | Less Control Stop (order separately) (L/STOP), XL Sweat Solder Adapter Kit (XL) | Shutoff | None (Order Separately) |
| Fixture Served | Water Closet | Body style | Exposed |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 26.5" | Spud connection | Top Spud |
Certifications & Standards
| ADA | Buy American Act |
| BABA | IAPMO |
| ASSE-1037 | — |
Compare with similar products
| Shutoff | None (Order Separately)
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | REGAL BPW 1150
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Manual
| Manual
|
| Certifications | ADA, Buy American Act, BABA, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Less Control Stop (order separately) (L/STOP), XL Sweat Solder Adapter Kit (XL)
| No Control Stop (XD)
|
