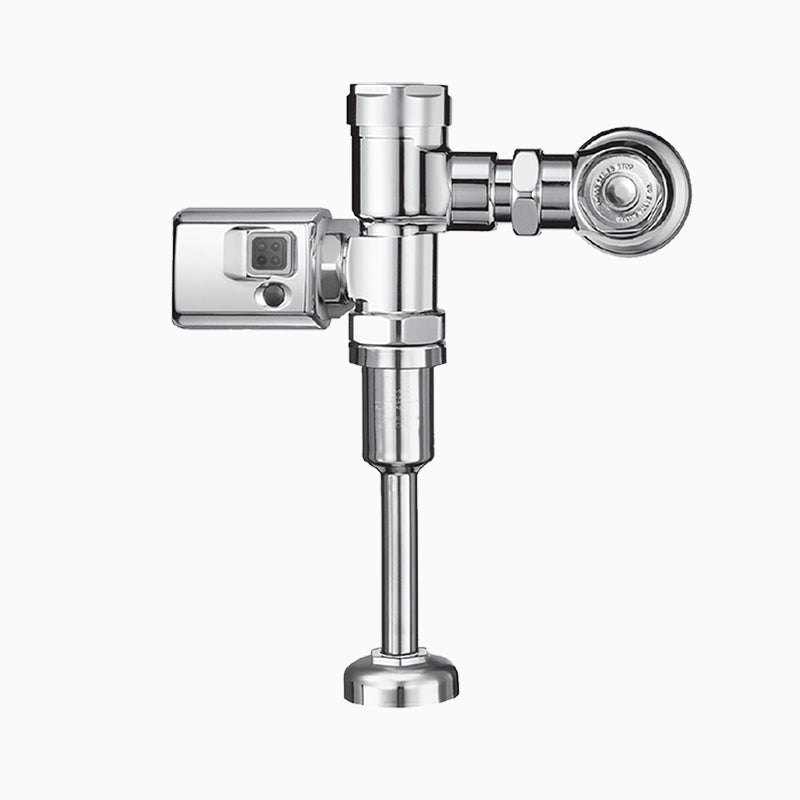

The Sloan GEM-2 186-0.25 is a sensor-operated piston-type flush valve for a urinal. It delivers 0.25 gallons per flush, with an exposed body.
Urinal flushometer with ultra-low 0.125 gpf flush volume. Fixed piston, ADA-compliant handle, and durable brass construction ensure reliable operation.
Options on this configuration: XL Sweat Solder Adapter Kit (XL). Sloan model number: GEM-2 186-0.25.
Features
- Flush volumes start at 0.125 gpf/0.5 Lpf
- Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Sensor
- MPN: GEM-2 186-0.25
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 0.25
- Power Source: DC (Battery)
Details
| Series | GEM-2 186 SMO | Device Type | Flushometer |
| Operation | Sensor | Options | XL Sweat Solder Adapter Kit (XL) |
| Fixture Served | Urinal | Body style | Exposed |
| Cycle volume gal | 0.25 gal | Power source | DC (Battery) |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
|
| Series | GEM-2 186 SMO
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Sensor
| Sensor
|
| Certifications | ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
