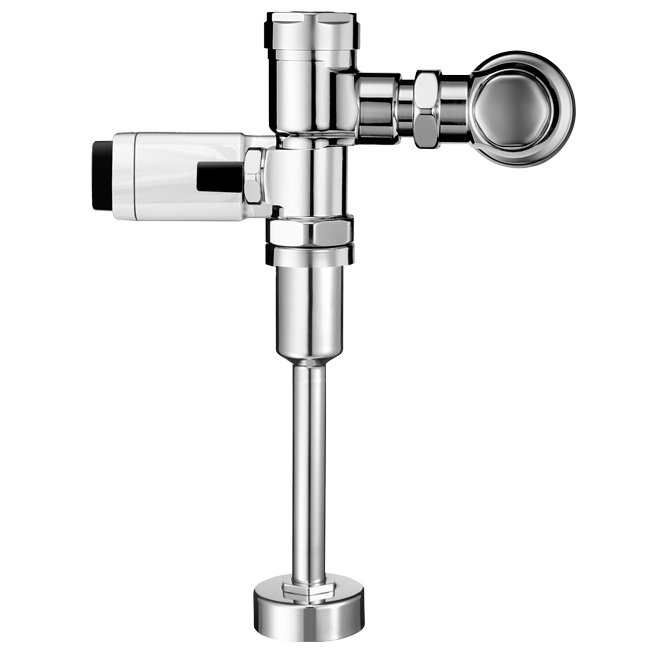

Sloan Gem-2 186 SFSM Exposed Battery-Powered Sensor Urinal Flushometer (0.5 GPF) TMO

The Sloan GEM-2 186 SFSM-0.5-XL-CP-TMO is a sensor-operated piston-type flush valve for a urinal. It delivers 0.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Sloan GEM-2 186 SFSM exposed sensor urinal flushometer with PERMEX rubber internals and dezincification-resistant brass. ADA compliant.

Options on this configuration: XL Sweat Solder Adapter Kit (XL); True Mechanical Override (TMO). Sloan model number: GEM-2 186 SFSM-0.5-XL-CP-TMO.

Features

• 0.5 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, 0.75" Flush Connection, Fixture Connection Top Spud, Single Flush, 0.75" Inlet, 3/4" Control Stop, True Mechanical Override, Battery, Infrared
• Flush volumes start at 0.125 gpf/0.5 Lpf
• Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation
• Integrity of the product is maintained with control stop plug
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required. It has a true mechanical override, so it still flushes by hand if power is lost.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: GEM-2 186 SFSM-0.5-XL-CP-TMO
• Certifications: ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Sensor Type: Infrared
• Override Type: True Mechanical Override
• Sensing Range (in): 15"-30"
