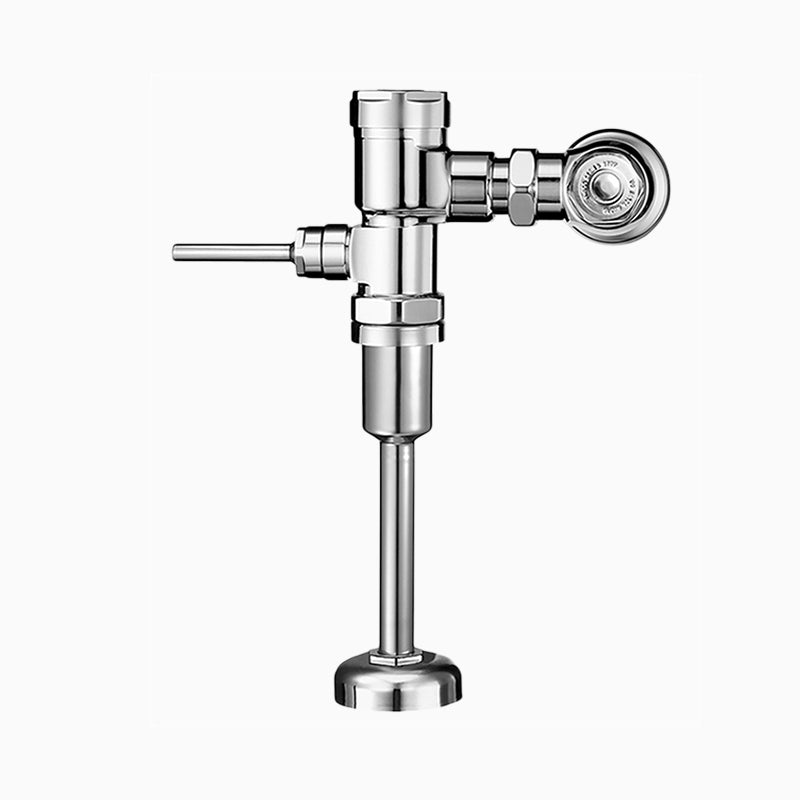

Sloan Gem-2 186-0.125 Exposed Manual Flushometer, 0.125 gpf, Cast Set Screw Wall Flange and Casing Tube, 15"VB H573A

The Sloan GEM-2 186-0.125 is a manual piston-type flush valve for a urinal. It delivers 0.125 gallons per flush, with an exposed body.

Sloan GEM-2 186 exposed manual urinal flushometer with dezincification-resistant brass and PERMEX rubber components for long-term reliability.

Options on this configuration: XL Sweat Solder Adapter Kit (XL); Cast Set Screw Wall Flange and Casing Tube (YBYC); 15"VB; H573A. Sloan model number: GEM-2 186-0.125. Sloan's own price-list description: GEM-2 186-0.125 XL YBYC 15"VB H573A.

Features

• Flush volumes start at 0.125 gpf/0.5 Lpf
• Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation
• Integrity of the product is maintained with control stop plug
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: GEM-2 186-0.125
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 0.125
