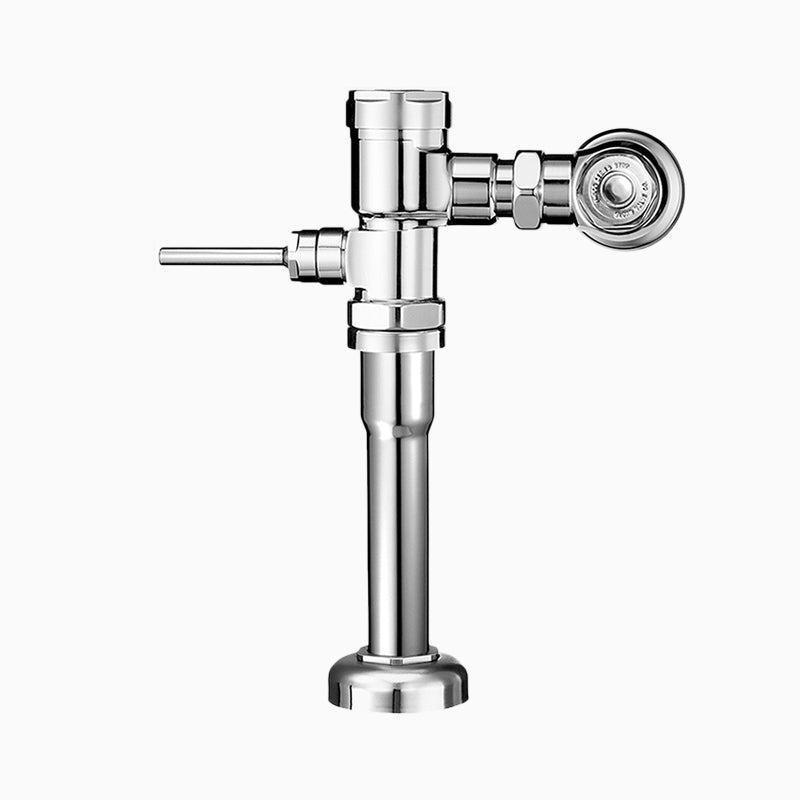

The Sloan GEM-2 180-1.5 is a manual piston-type flush valve for a urinal. It delivers 1.5 gallons per flush, with an exposed body.
GEM-2 180 exposed manual urinal flushometer. ADA-compliant handle, PERMEX rubber internals, and dezincification-resistant brass.
Options on this configuration: XL Sweat Solder Adapter Kit (XL); W/0323031; VB. Sloan model number: GEM-2 180-1.5. Sloan's own price-list description: GEM-2 180-1.5 XL W/0323031 VB.
Features
- Flush volumes start at 0.125 gpf/0.5 Lpf
- Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: GEM-2 180-1.5
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 1.5
Details
| Series | GEM-2 180 | Device Type | Flushometer |
| Operation | Manual | Options | XL Sweat Solder Adapter Kit (XL), W/0323031, VB |
| Fixture Served | Urinal | Body style | Exposed |
| Cycle volume gal | 1.5 gal | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
|
| Series | GEM-2 180
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | XL Sweat Solder Adapter Kit (XL), W/0323031, VB
| No Control Stop (XD)
|
