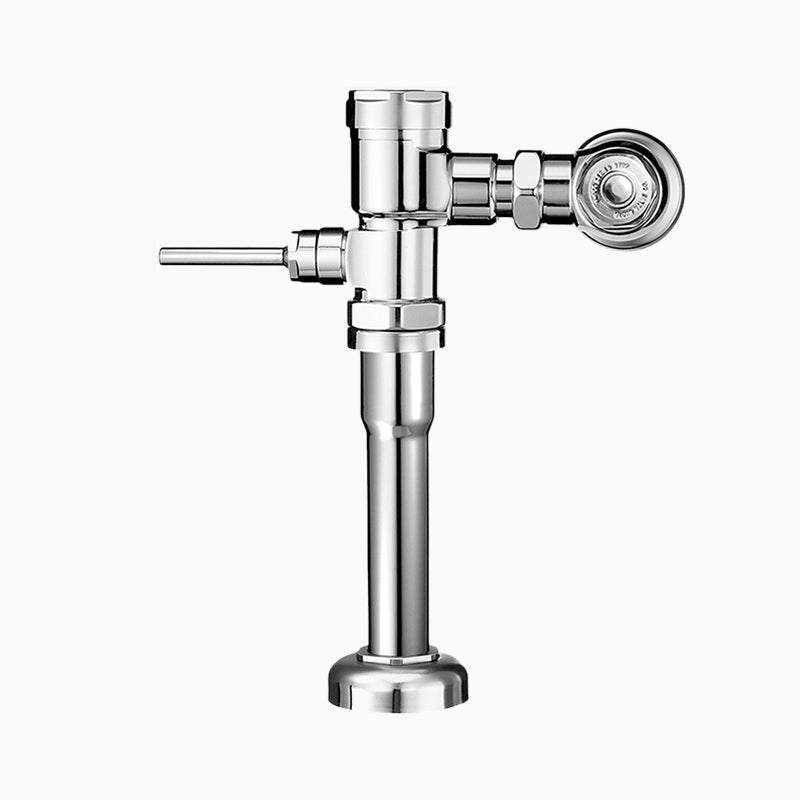

The Sloan GEM-2 180-3.5-XL-CP is a manual piston-type flush valve for a urinal. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
GEM-2 180 exposed manual urinal flushometer. ADA-compliant handle, PERMEX rubber internals, and dezincification-resistant brass.
Options on this configuration: XL Sweat Solder Adapter Kit (XL). Sloan model number: GEM-2 180-3.5-XL-CP.
Features
- 3.5 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
- Flush volumes start at 0.125 gpf/0.5 Lpf
- Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 3.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/4"
- Body Material: Semi-Red Brass
- Operation: Manual
- Country of Origin: USA
- MPN: GEM-2 180-3.5-XL-CP
- Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 3.5
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/4" |
Details
| Series | GEM-2 180 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Manual |
| Options | XL Sweat Solder Adapter Kit (XL) | Fixture Served | Urinal |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 3.5 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 11.5" |
| Spud connection | Top Spud | — | — |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | ASSE-1037 |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
|
| Series | GEM-2 180
| SLOAN 112
|
| Country Of Origin | USA
| USA
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/4"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Manual
| Manual
|
| Certifications | ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | XL Sweat Solder Adapter Kit (XL)
| No Control Stop (XD)
|
