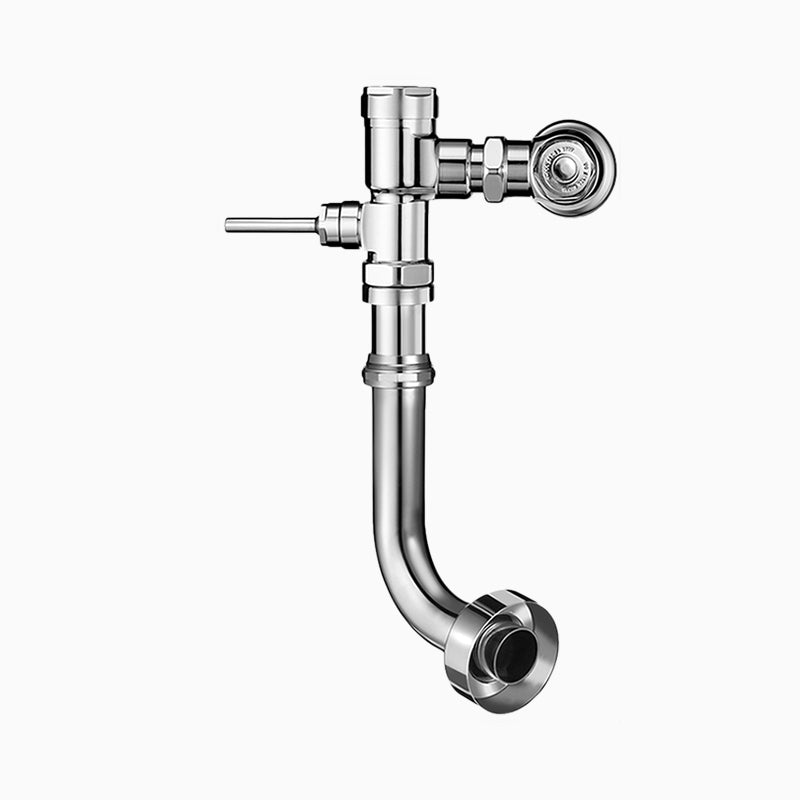

The Sloan GEM-2 120-3.5-XL-YG-CP is a manual piston-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a rear spud connection at an exposed body. It features a semi-red brass body.
GEM-2 120 exposed manual flushometer with dezincification-resistant brass castings, PERMEX rubber internals, and ADA-compliant handle. ASSE 1037 compliant.
Options on this configuration: Angle Stop Extended Bumper (YG); XL Sweat Solder Adapter Kit (XL). Sloan model number: GEM-2 120-3.5-XL-YG-CP.
Features
- 3.5 gpf, XL Sweat Solder Adapter Kit, Angle Stop Extended Bumper, Polished Chrome Finish, Fixture Connection Rear Spud, Single Flush
- Flush volumes start at 1.28 gpf/4.8 Lpf for greater water savings
- Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Operation: Manual
-
Country of Origin: USA
-
MPN: GEM-2 120-3.5-XL-YG-CP
-
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Spud Connection: Rear Spud
-
Rough-In (in): 11.5"
-
Volume per Flush (gal): 3.5
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
