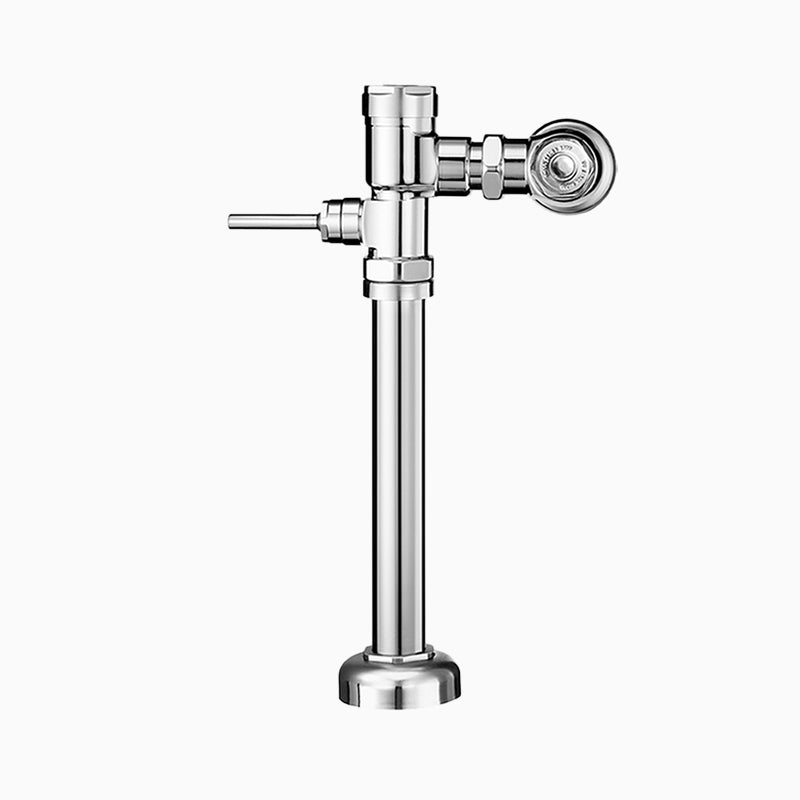

Sloan Gem-2 113-1.28 Exposed Manual Flushometer, 1.28 gpf, Top Spud, Polished Chrome

The Sloan GEM-2 113-1.28-XL-CP is a manual piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Sloan GEM-2 113 exposed manual water closet flushometer. Semi-Red Brass body, ASSE 1037 compliant, ADA and LEED compliant.

Options on this configuration: XL Sweat Solder Adapter Kit (XL). Sloan model number: GEM-2 113-1.28-XL-CP.

Features

• 1.28 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Manual
• Country of Origin: USA
• MPN: GEM-2 113-1.28-XL-CP
• Certifications: ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 16"
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
