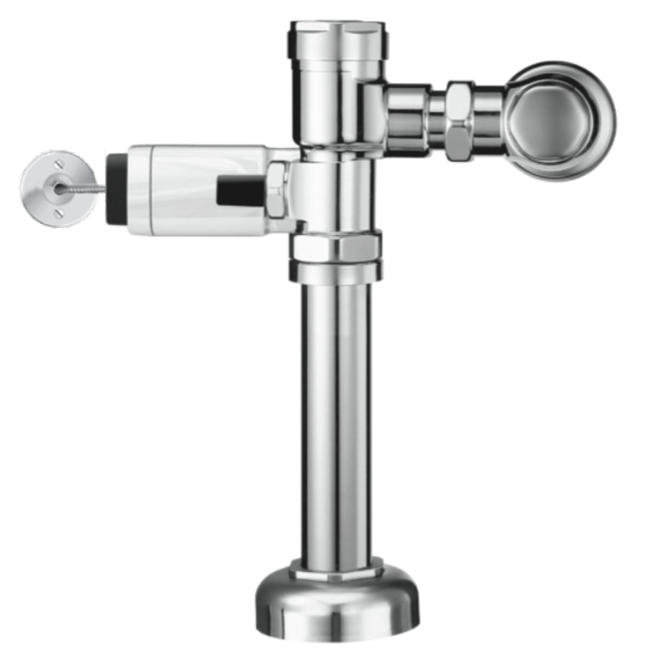

Sloan Gem-2 111 SFSM Exposed Hardwired Sensor Water Closet Flushometer (1.28 GPF)

The Sloan GEM-2 111 SFSM-1.28-XL-CP-HW is a sensor-operated piston-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

GEM-2 111 SFSM flushometer saves water with 1.28 gpf flush volumes. ADA-compliant handle and durable components ensure reliable operation.

Options on this configuration: XL Sweat Solder Adapter Kit (XL); Hardwired (HW). Sloan model number: GEM-2 111 SFSM-1.28-XL-CP-HW.

Features

• 1.28 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Hardwired
• Flush volumes start at 1.28 gpf/4.8 Lpf for greater water savings
• Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation
• Integrity of the product is maintained with control stop plug
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: GEM-2 111 SFSM-1.28-XL-CP-HW
• Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
