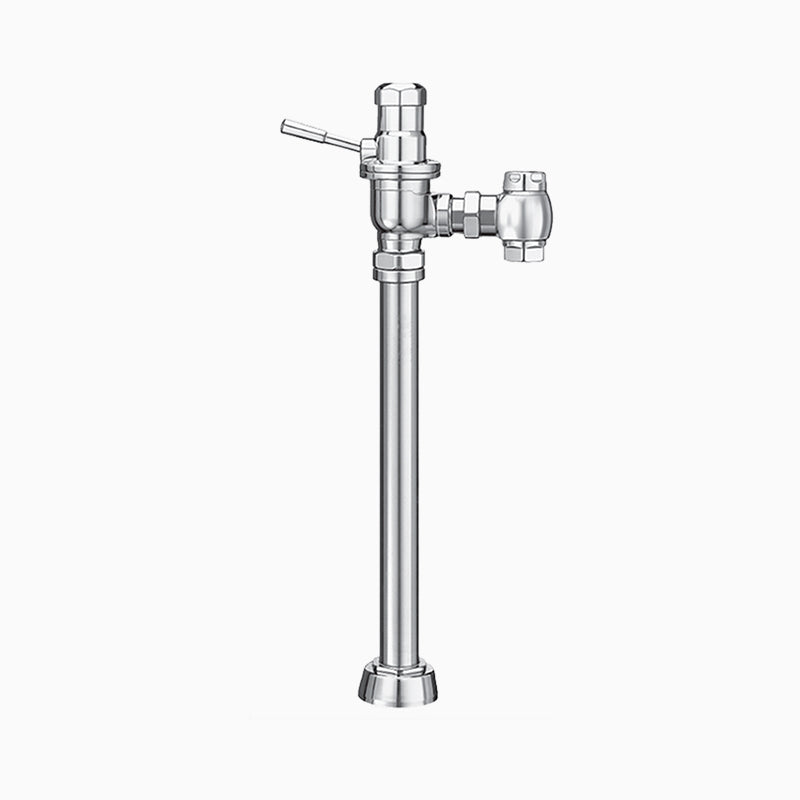

Sloan Dolphin 115 Exposed Manual Flushometer

The Sloan DOLPH is a manual piston-type flush valve for a water closet.

Exposed manual water closet flushometer with oil-isolated control mechanism, adjustable flush volume, and military spec compliance. ASSE 1037 certified.

Options on this configuration: Less Vacuum Breaker (order separately) (XYV); H551; 4-1/16; IN; SPL. Sloan model number: DOLPH. Sloan's own price-list description: DOLPH 115 XYV H551 4-1/16 IN SPL.

Features

• Flush volume is factory set with option of adjusting volume range according to specific needs
• Flushing control mechanism functions in oil and is isolated from debris
• Water pressure not required to positively shut off
• Complies with military specifications
• Regulating screw for flush duration control
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: DOLPH
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Backflow Device: None (Order Separately)
