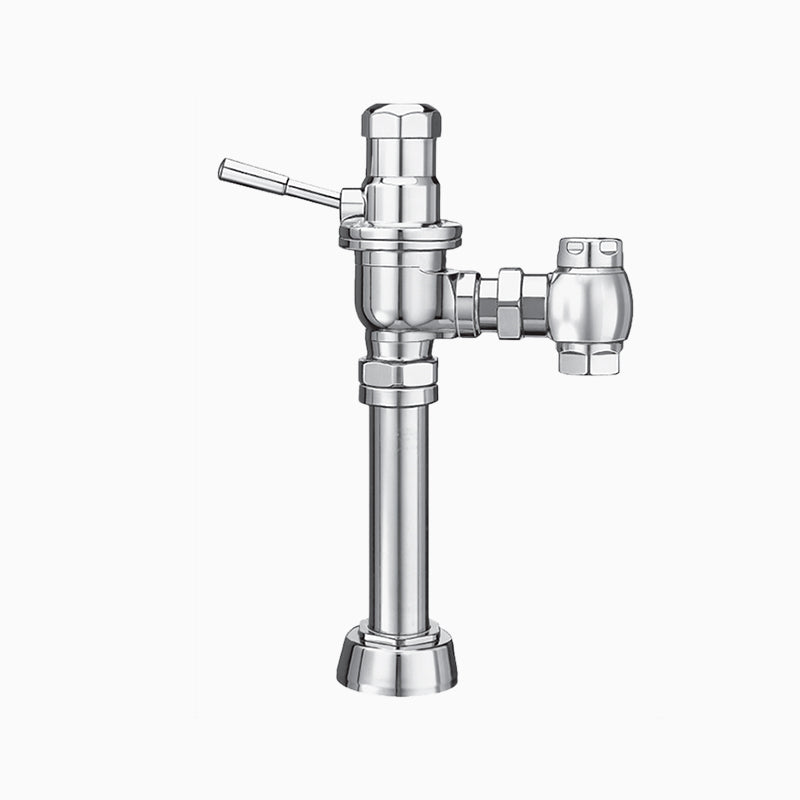

Sloan Dolphin 110 Exposed Manual Flushometer, Ground Joint Control Stop, Less Control Stop, Less Vacuum Breaker, & Tail

The Sloan DOLPH is a manual piston-type flush valve for a water closet.

Sloan DOLPHIN 110 exposed manual flushometer with oil-isolated control mechanism, adjustable flush volume, and ASSE 1037 compliance. Meets military specs.

Options on this configuration: Ground Joint Control Stop (GJ); Less Control Stop (order separately) (L/STOP); Less Vacuum Breaker (order separately) (XYV); &; TAIL. Sloan model number: DOLPH. Sloan's own price-list description: DOLPH 110 GJ XYV L/STOP & TAIL.

Features

• Flush volume is factory set with option of adjusting volume range according to specific needs
• Flushing control mechanism functions in oil and is isolated from debris
• Water pressure not required to positively shut off
• Complies with military specifications
• Regulating screw for flush duration control
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

What control stop ships with this valve?

Ground Joint, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Operation: Manual
• Control Stop: Ground Joint
• MPN: DOLPH
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Backflow Device: None (Order Separately)
