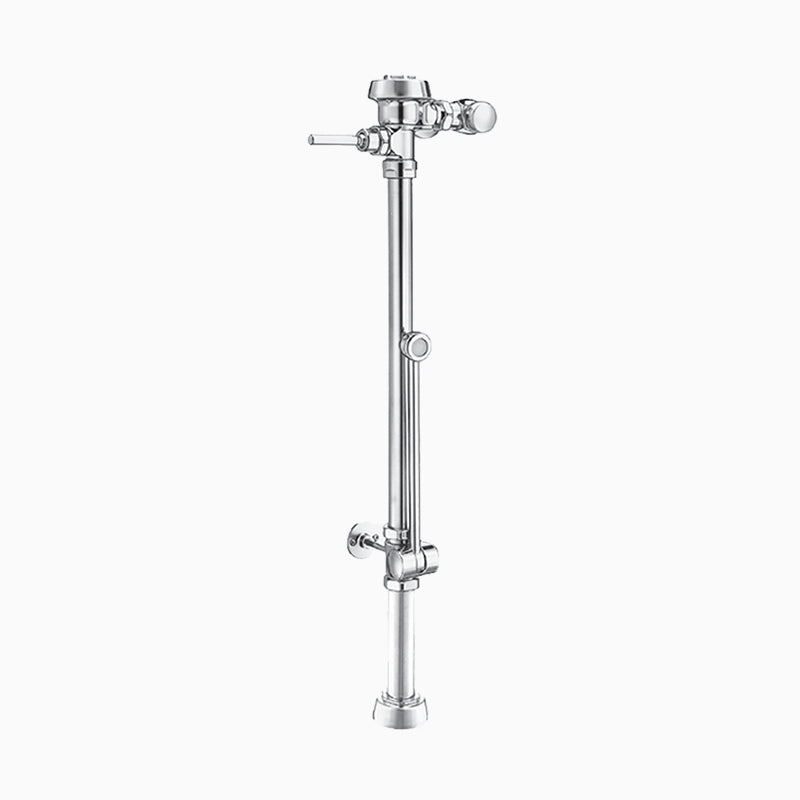

The Sloan Royal BPW 1000-1.28 is a manual diaphragm-type flush valve for a service sink. It delivers 1.28 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Exposed bedpan washer flushometer with semi-red brass construction, ASSE 1037 compliant, eliminating hose sprays for a cleaner facility.
Options on this configuration: NOR; W/V555; 24". Sloan model number: Royal BPW 1000-1.28. Sloan's own price-list description: ROYAL BPW 1000-1.28 NOR W/V555 24".
Features
- Exposed water closet, diaphragm model Flushometer is intended for floor-mounted or wall-hung top spud bowls
- Operates by means of a metal oscillating, non-hold-open handle with a triple seal handle packing to ensure water conservation
- Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
- Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
- Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink, 1.28 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
MPN: Royal BPW 1000-1.28
-
Certifications: ASSE-1037
-
Fixture Served: Service Sink
-
Body Style: Exposed
-
Volume per Flush (gal): 1.28
