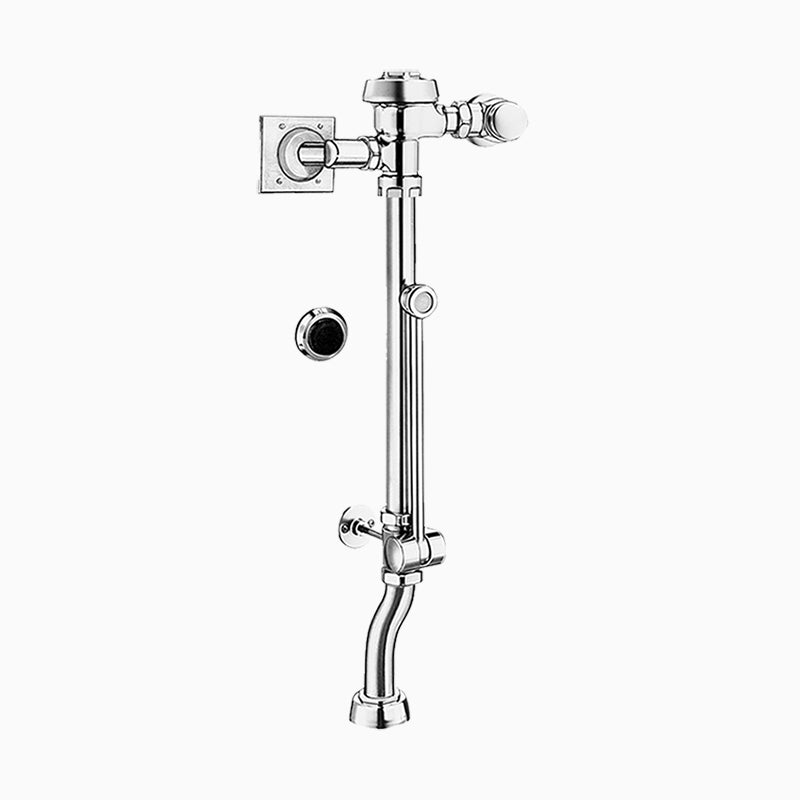

Sloan Royal BPW 9150-1.6 Exposed Manual Flushometer, 1.6 gpf, Top Spud

The Sloan ROYAL BPW 9150-1.6-K-RB is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan Royal BPW 9150 exposed manual bedpan washer flushometer with PERMEX diaphragm, semi-red brass construction, and ASSE 1037 compliance.

Options on this configuration: Wheel Handle Control Stop (K). Sloan model number: ROYAL BPW 9150-1.6-K-RB.

Features

• 1.6 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, Wheel Handle Control Stop
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• ADA Compliant Non-Hold-Open feature type Actuator (not included, order separately-specify Actuator type listed below)

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

What control stop ships with this valve?

Wheel Handle, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Control Stop: Wheel Handle
• MPN: ROYAL BPW 9150-1.6-K-RB
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 26.5"
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
