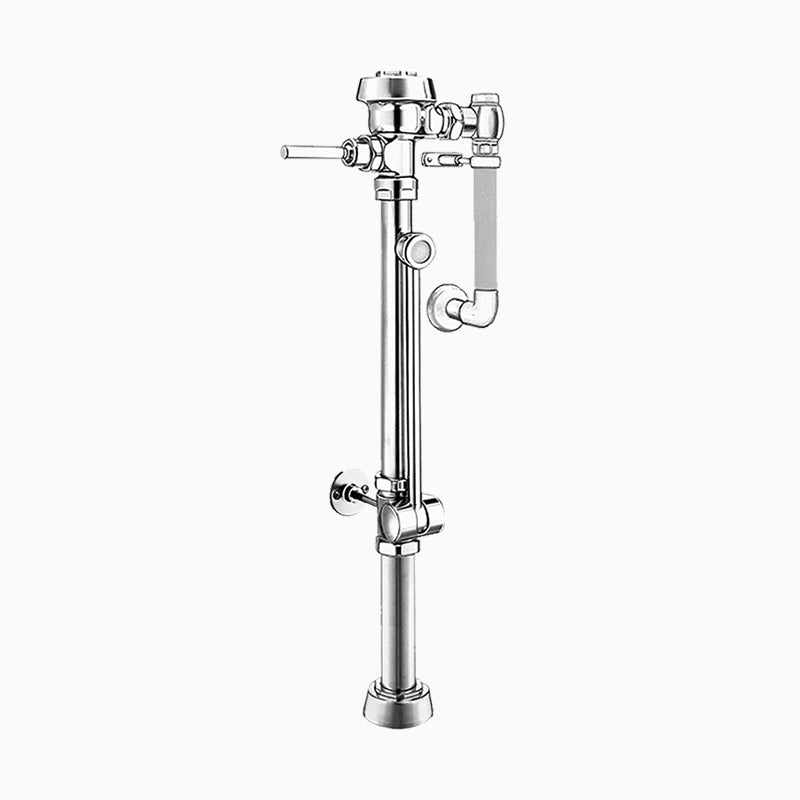

Sloan Royal BPW 1110-3.5 Exposed Manual Flushometer, 3.5 gpf, Top Spud, Polished Chrome

The Sloan ROYAL BPW 1110-3.5-CP is a manual diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan Royal BPW 1110 exposed bedpan washer flushometer with PERMEX diaphragm, dual filtered bypass, and ASSE 1037 compliant semi-red brass construction.

Base configuration: no option suffixes on this model number (ROYAL BPW 1110-3.5-CP).

Features

• 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: ROYAL BPW 1110-3.5-CP
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 26.5"
• Volume per Flush (gal): 3.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
