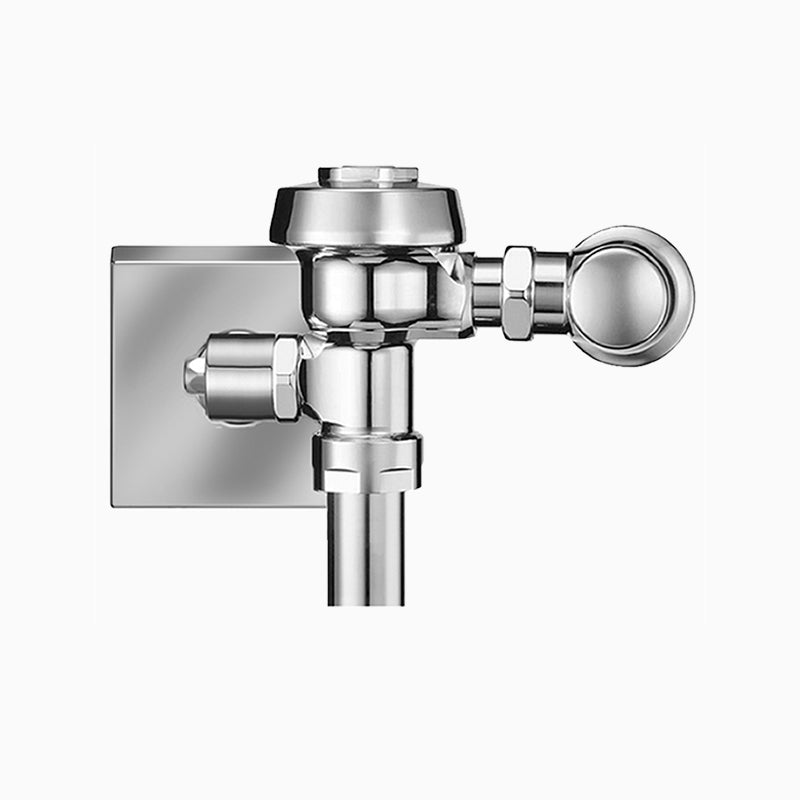

The Sloan ROYAL 841-1.5-CP is a manual diaphragm-type flush valve for a urinal. It delivers 1.5 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Base configuration: no option suffixes on this model number (ROYAL 841-1.5-CP).
Features
- 1.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
MPN: ROYAL 841-1.5-CP
-
Certifications: ADA, Buy American Act, ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Concealed
-
Spud Connection: Top Spud
-
Volume per Flush (gal): 1.5
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
