Sloan Royal 681-3.5 Concealed Manual Flushometer, 3.5 gpf, Top Spud, Unfinished (Rough Brass), 7-3/4" LDIM, 1" Straight Control Stop

Roll over image to zoom in

Sloan Royal 681-3.5 Concealed Manual Flushometer, 3.5 gpf, Top Spud, Unfinished (Rough Brass), 7-3/4" LDIM, 1" Straight Control Stop

Name: Sloan Royal 681-3.5 Concealed Manual Flushometer, 3.5 gpf, Top Spud, Unfinished (Rough Brass), 7-3/4" LDIM, 1" Straight Control Stop
Brand: Sloan
SKU: 3016404
Price: 304.75 USD
Availability: InStock

Save $144.35

SloanSKU: 3016404

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

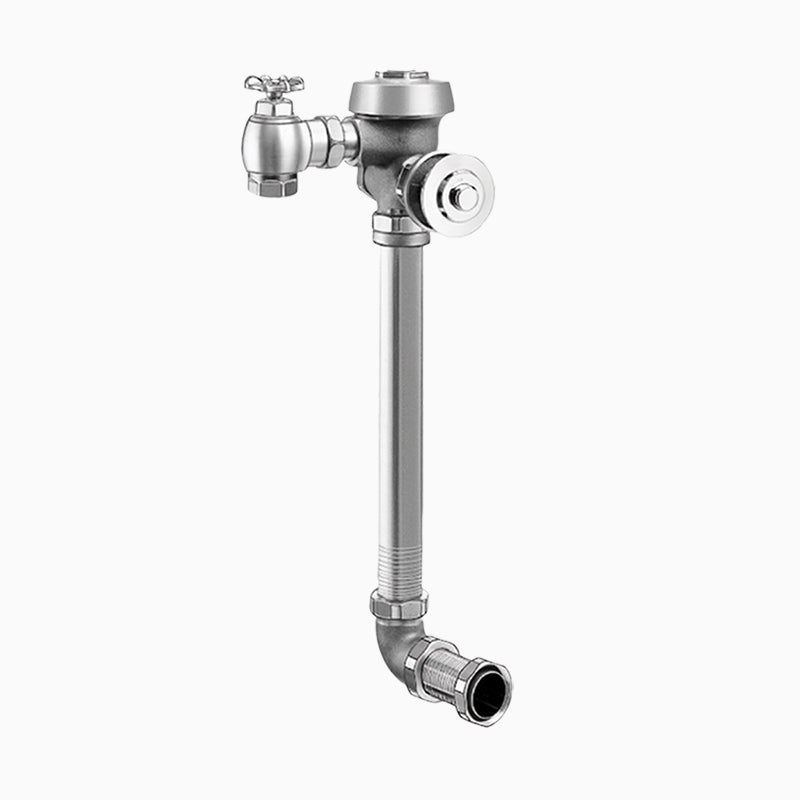

The Sloan ROYAL 681-3.5-E-RB-7-3/4-LDIM is a manual diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan ROYAL 681 concealed manual water closet flushometer. PERMEX diaphragm, semi-red brass body, ASSE 1037 compliant. BAA compliant and Made in the USA.

Options on this configuration: 7-3/4" L Dimension (LDIM); 1" Straight Control Stop (E). Sloan model number: ROYAL 681-3.5-E-RB-7-3/4-LDIM.

Features

3.5 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, 1" Straight Control Stop, 7.75" L Dimension
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?: Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.
Is this exposed or concealed, and does it need a wall box?: Concealed -- the body sits behind the wall, with only the cover or trim visible.
Is this ADA, WaterSense, or ASSE 1037 listed?: Yes -- Sloan lists it as ASSE-1037.
What control stop ships with this valve?: 1" Straight, per Sloan's own spec for this model.

Specifications

Type: Flushometer
Inlet Size: 1"
Outlet Size: 1-1/2"
Body Material: Semi-Red Brass
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
Operation: Manual
Control Stop: 1" Straight
Country of Origin: USA
MPN: ROYAL 681-3.5-E-RB-7-3/4-LDIM
Certifications: Buy American Act, IAPMO, ASSE-1037
Fixture Served: Water Closet
Body Style: Concealed
Spud Connection: Top Spud
Rough-In (in): 26"
L Dimension (in): 7-3/4"
Volume per Flush (gal): 3.5
Dual Flush: No
Finish: Unfinished (Rough Brass)
Min Operating Pressure (PSI): 15
Max Operating Pressure (PSI): 80
