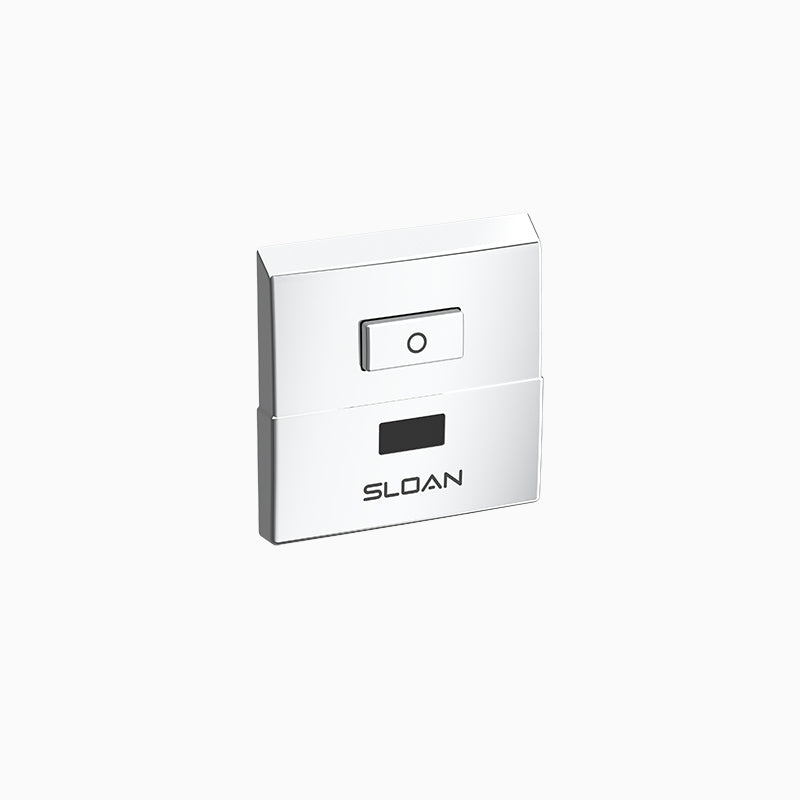

Sloan Royal 195 ESS TMO SBX Concealed Hardwired Sensor Urinal Flushometer (0.125 GPF) TMO, Brushed Stainless

The Sloan ROYAL 195 ESS TMO SBX-0.125-SF-TMO-24V is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a concealed body. It features a semi-red brass body.

Precise urinal flushing with Royal® Concealed Sensor Hardwired Flushometer. ADA compliant, water-efficient design for commercial facilities.

Options on this configuration: 24V Power (24V); True Mechanical Override (TMO); SBX. Sloan model number: ROYAL 195 ESS TMO SBX-0.125-SF-TMO-24V. Sloan's own price-list description: ROYAL 195-0.125 ESS TMO SBX PVDSF.

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: ROYAL 195 ESS TMO SBX-0.125-SF-TMO-24V
• Certifications: Buy American Act, BABA, IAPMO
• Fixture Served: Urinal
• Body Style: Concealed
• L Dimension (in): 2"-10-3/4"
• Volume per Flush (gal): 0.125
• Finish: Brushed Stainless
• Backflow Device: Vacuum Breaker
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
• Power Supply Detail: 24V
• Override Type: True Mechanical Override
• Sensing Range (in): 15"-30"
