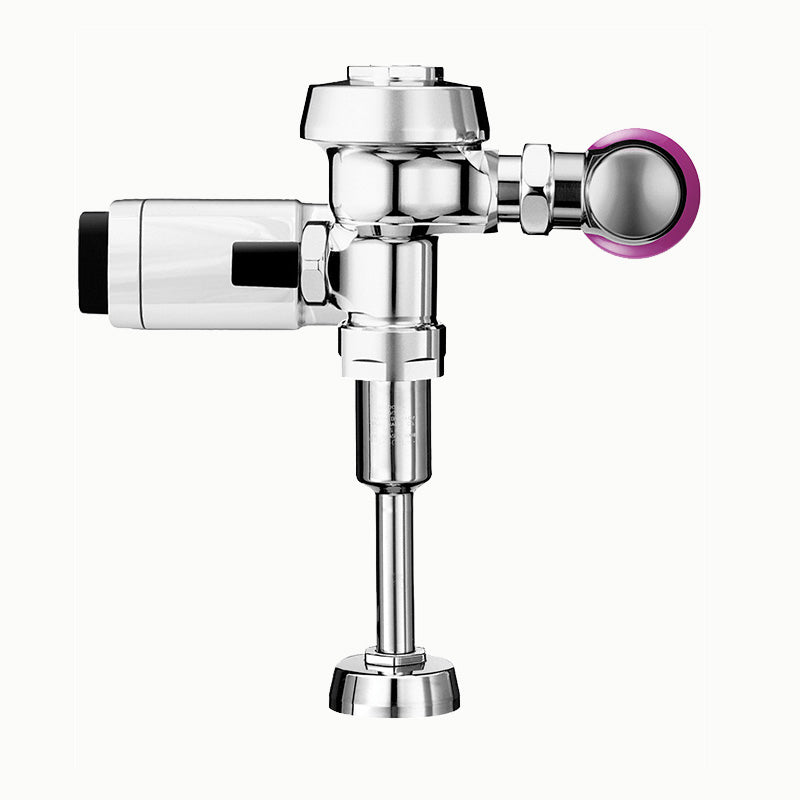

The Sloan ROYAL 186 RW SFSM-0.125-CP-TMO is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Discover the ROYAL 186 RW SFSM flushometer for commercial facilities. Designed for reclaimed water use with clear visual indicators. Enhance sustainability and efficiency.
Options on this configuration: True Mechanical Override (TMO); RW. Sloan model number: ROYAL 186 RW SFSM-0.125-CP-TMO. Sloan's own price-list description: ROYAL 186-0.125 RW SFSM.
Features
- 0.125 gpf, Polished Chrome Finish, 0.75" Flush Connection, Fixture Connection Top Spud, Single Flush, 0.75" Inlet, 3/4" Control Stop, True Mechanical Override, Battery, Infrared
- Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use.
- All organic rubber has been replaced with synthetic compounds
- Interior components are purple to let maintenance personnel know the flushometer is designed for reclaimed water
- Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
- Optional purple handle provides additional indication of reclaimed water use.
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required. It has a true mechanical override, so it still flushes by hand if power is lost.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Sensor
-
MPN: ROYAL 186 RW SFSM-0.125-CP-TMO
-
Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 11.5"
-
Volume per Flush (gal): 0.125
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: DC (Battery)
-
Sensor Type: Infrared
-
Override Type: True Mechanical Override
-
Sensing Range (in): 15"-30"
