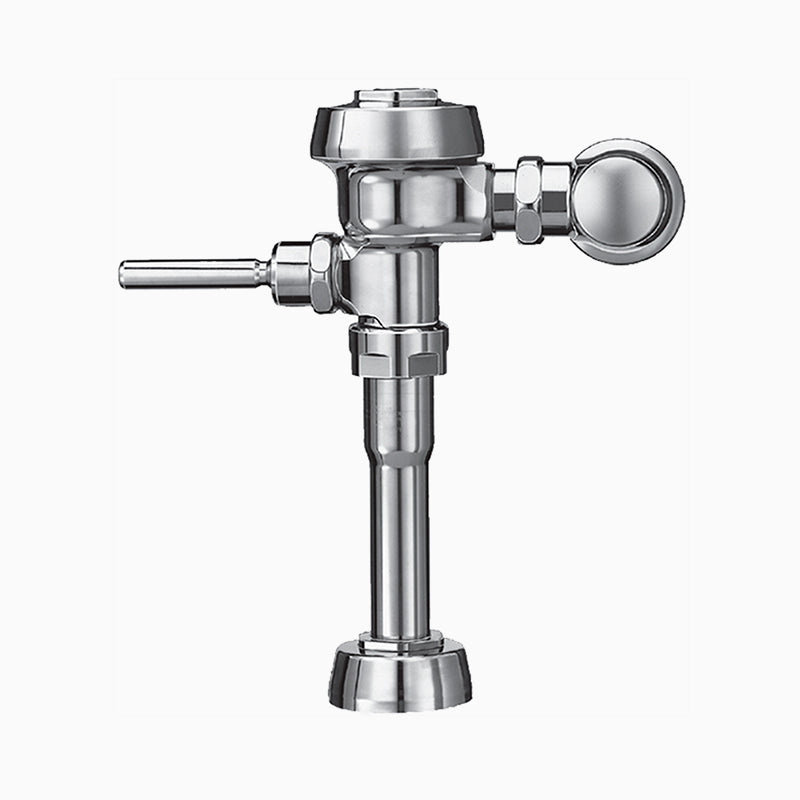

Sloan Royal 180-3.5 Exposed Manual Flushometer, 3.5 gpf, Top Spud, Polished Chrome, Nickel-Silver Handle

The Sloan ROYAL 180-3.5-CP-YA is a manual diaphragm-type flush valve for a urinal. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan ROYAL 180 exposed manual urinal flushometer features semi-red brass construction, PERMEX synthetic diaphragm, and ASSE 1037 compliance.

Options on this configuration: Nickel-Silver Handle (YA). Sloan model number: ROYAL 180-3.5-CP-YA.

Features

• 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Nickel-Silver Handle
• All organic rubber has been replaced with synthetic compounds
• Optional purple handle provides additional indication of reclaimed water use
• Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 3.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

What kind of handle does this have?

A Nickel-Silver handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Country of Origin: USA
• MPN: ROYAL 180-3.5-CP-YA
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 3.5
• Dual Flush: No
• Finish: Polished Chrome
• Handle Style: Nickel-Silver
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
