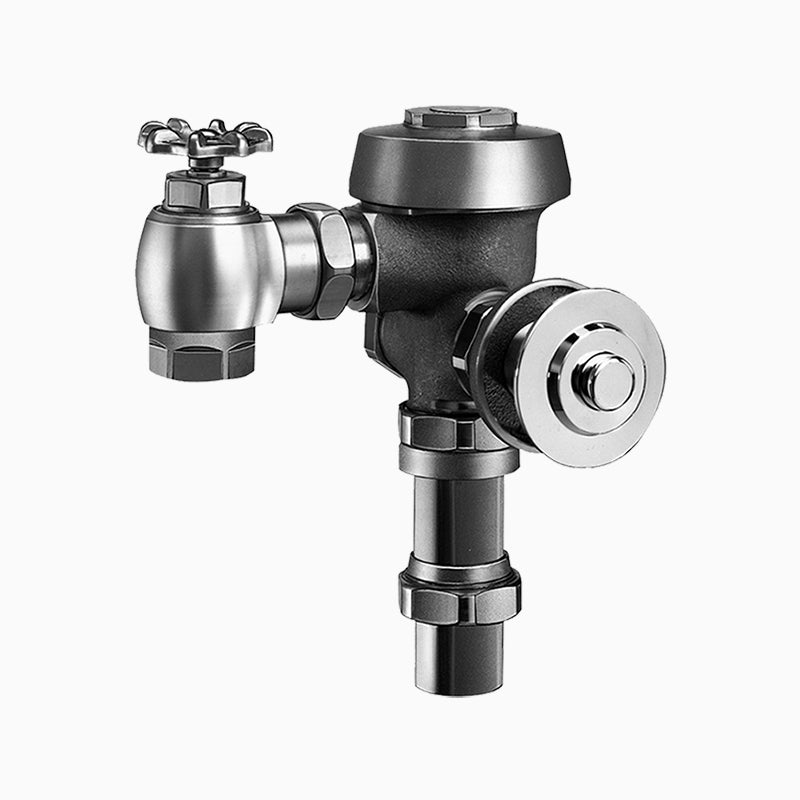

The Sloan Royal 150 is a manual diaphragm-type flush valve for a service sink. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 150 concealed manual flushometer available in multiple flush volumes, CID technology, and ADA-compliant handle. ASSE 1037 compliant.
Options on this configuration: 2-3/4" L Dimension (LDIM); 3" Metal Oscillating Handle (L3); Wall Box Version (WB).
Features
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- What kind of handle does this have?
- A 3" Metal Oscillating handle, per Sloan's own spec for this model.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
MPN: Royal 150
-
Certifications: ASSE-1037
-
Fixture Served: Service Sink
-
Body Style: Concealed
-
L Dimension (in): 2-3/4"
-
Handle Style: 3" Metal Oscillating
-
Vandal Resistant: Yes
