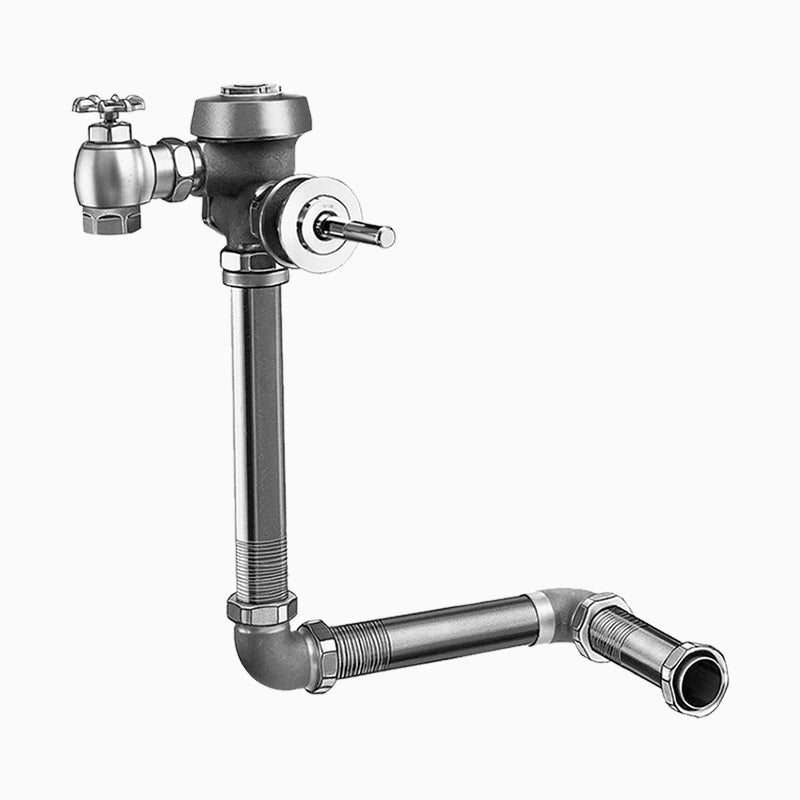

The Sloan Royal 144 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 144 concealed manual flushometer available in multiple flush volumes, CID technology, ADA-compliant handle, and vandal-resistant stop cap.
Options on this configuration: 5-3/4" L Dimension (LDIM); 3" Metal Oscillating Handle (L3).
Features
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- What kind of handle does this have?
- A 3" Metal Oscillating handle, per Sloan's own spec for this model.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- MPN: Royal 144
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- L Dimension (in): 5-3/4"
- Handle Style: 3" Metal Oscillating
- Vandal Resistant: Yes
Details
| Series | ROYAL 144 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | 5-3/4" L Dimension (LDIM), 3" Metal Oscillating Handle (L3) | Fixture Served | Water Closet |
| Body style | Concealed | Handle style | 3" Metal Oscillating |
| L dimension in | 5-3/4" | Vandal resistant | Yes |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | ROYAL 144
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 5-3/4" L Dimension (LDIM), 3" Metal Oscillating Handle (L3)
| No Control Stop (XD)
|
