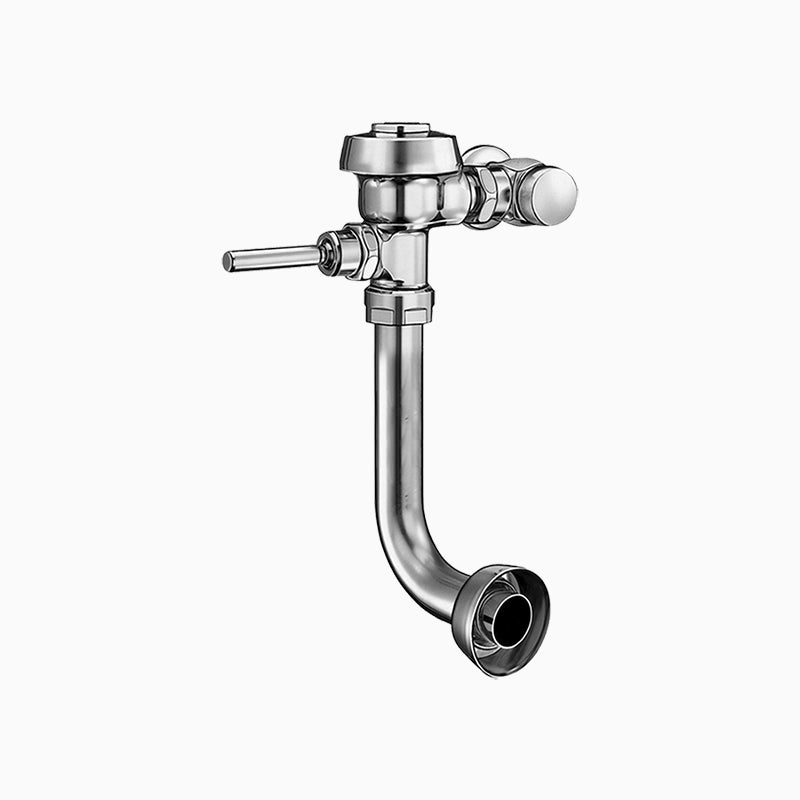

Sloan Royal 120 Exposed Manual Flushometer, Ground Joint Control Stop, Less Control Stop, with H5 Long

The Sloan Royal 120 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 120 exposed manual flushometer with CID technology, ADA compliant non hold open handle, and dezincification resistant brass castings.

Options on this configuration: Ground Joint Control Stop (GJ); Less Control Stop (order separately) (L/STOP); W/H5; 1-1/4; LG. Sloan's own price-list description: ROYAL 120 GJ L/STOP W/H5 1-1/4 LG.

Features

• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

What control stop ships with this valve?

Ground Joint, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Control Stop: Ground Joint
• MPN: Royal 120
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Vandal Resistant: Yes
